#Z003 2-Zone Misting Kit

Product Description
Create a refreshing misting system for gardens, greenhouses, patios and outdoor plants. This complete kit combines a 2-zone LCD water timer with adjustable brass misting nozzles, flexible 8-inch PVC-coated aluminum stems and PE tubing.

Each outlet can be programmed independently, allowing two areas to be watered from a single faucet. The push-to-connect tubing, nozzles and fittings make installation quick and simple. Each flexible stem can be bent to direct the mist exactly where it is needed.

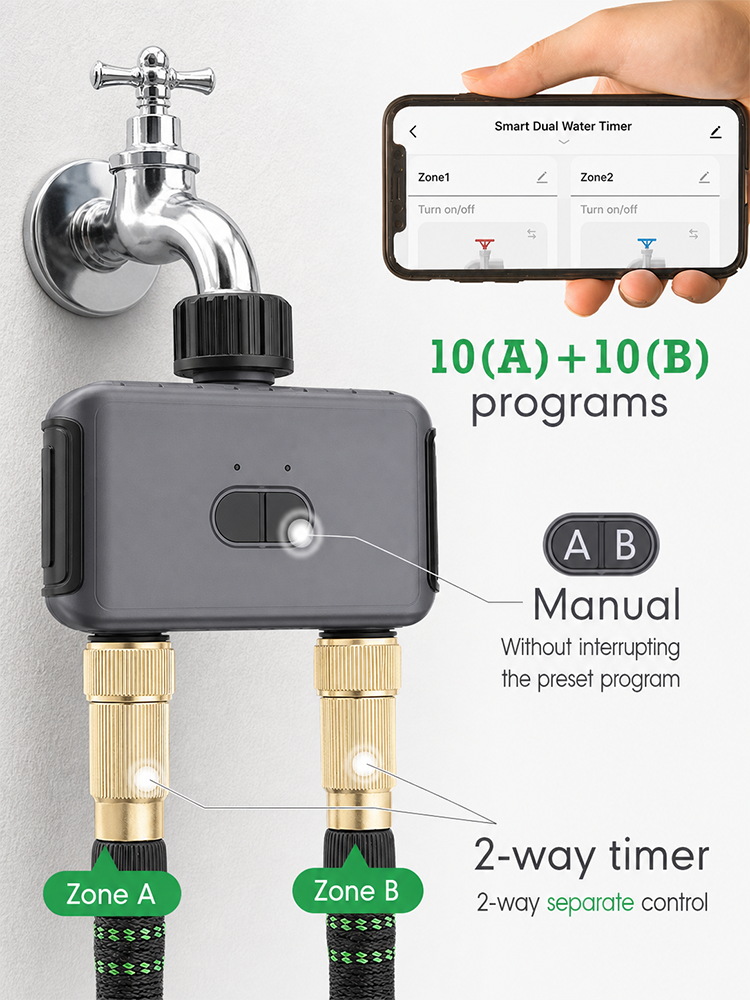

🌱 INDEPENDENT 2-ZONE CONTROL – Water two areas from one faucet. Each outlet supports its own start time, watering duration and watering frequency.

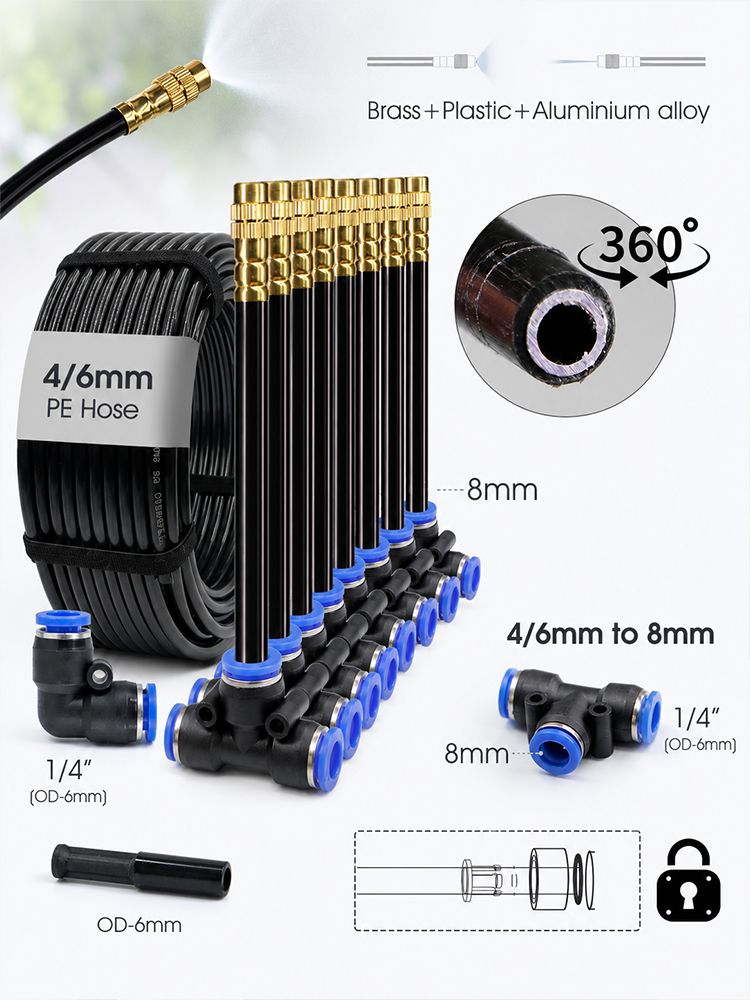

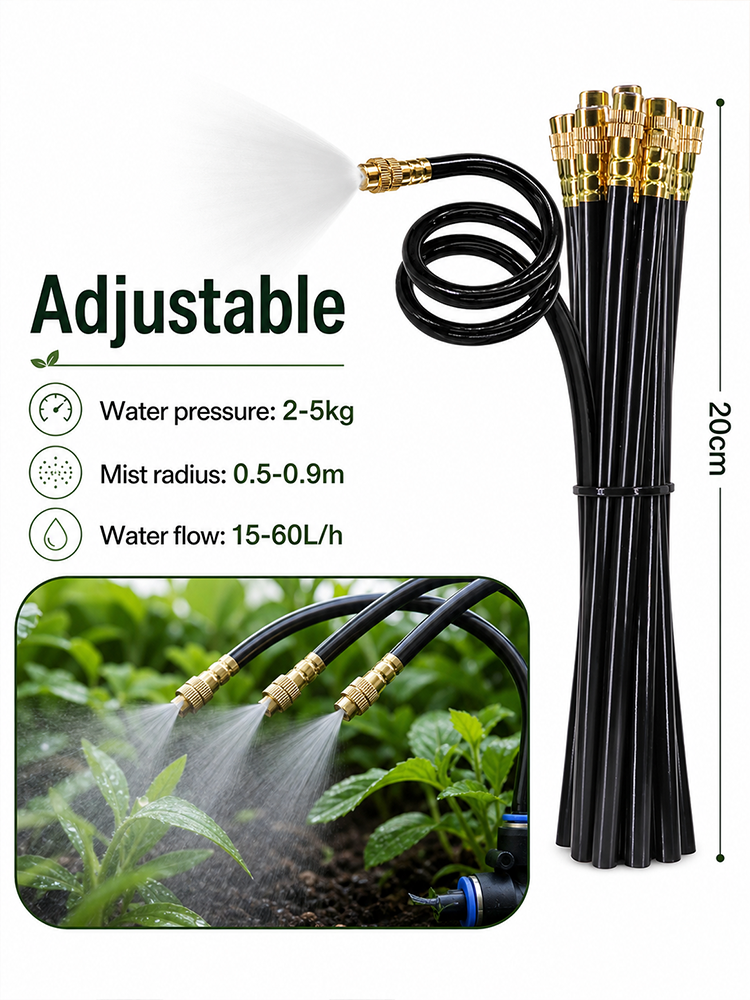

🌱 ADJUSTABLE 8-INCH MISTING STEMS – Includes adjustable brass misting heads mounted on flexible PVC-coated aluminum stems for precise positioning and mist direction.

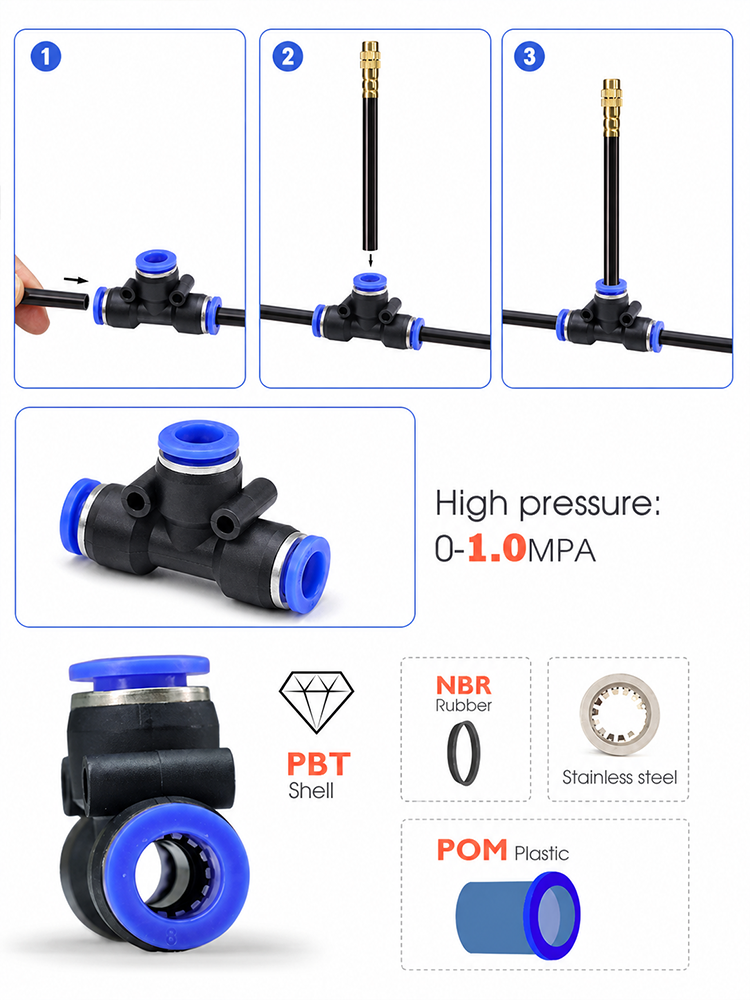

🌱 QUICK-CONNECT INSTALLATION – The nozzles, PE tubing and fittings feature a push-to-connect design. Cut the tubing to the required length and firmly insert it into each fitting.

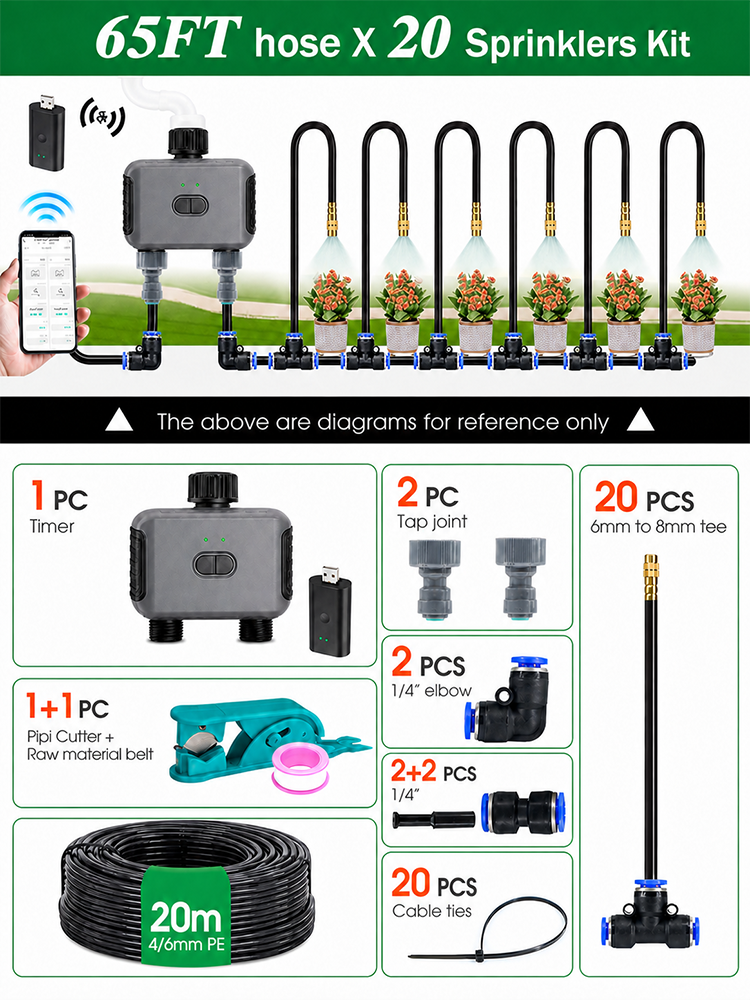

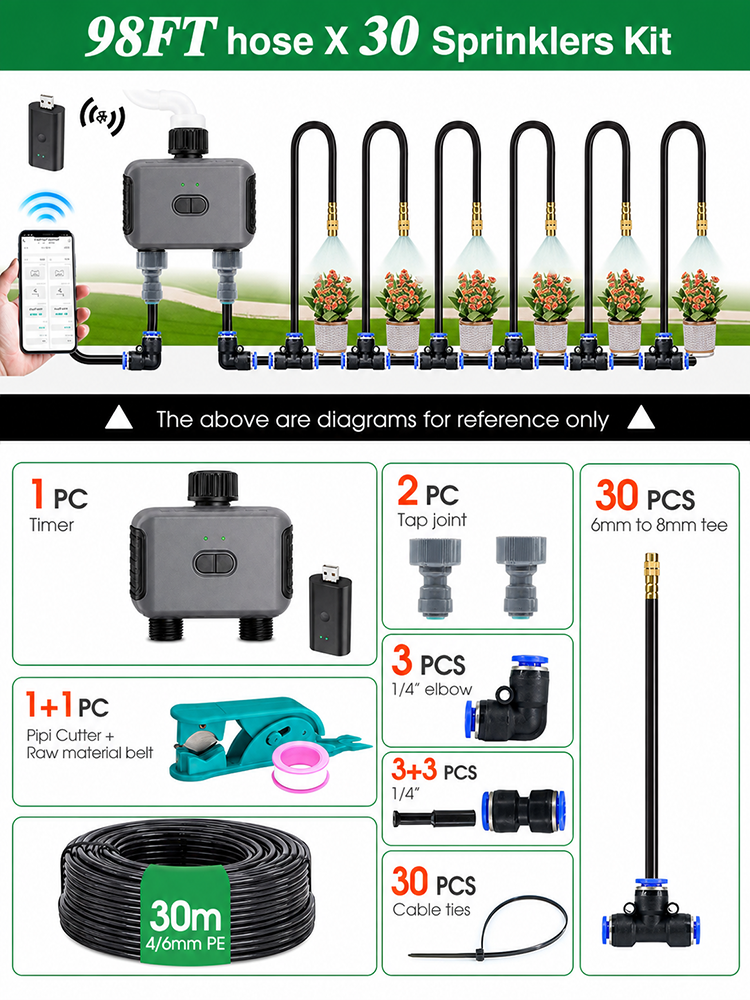

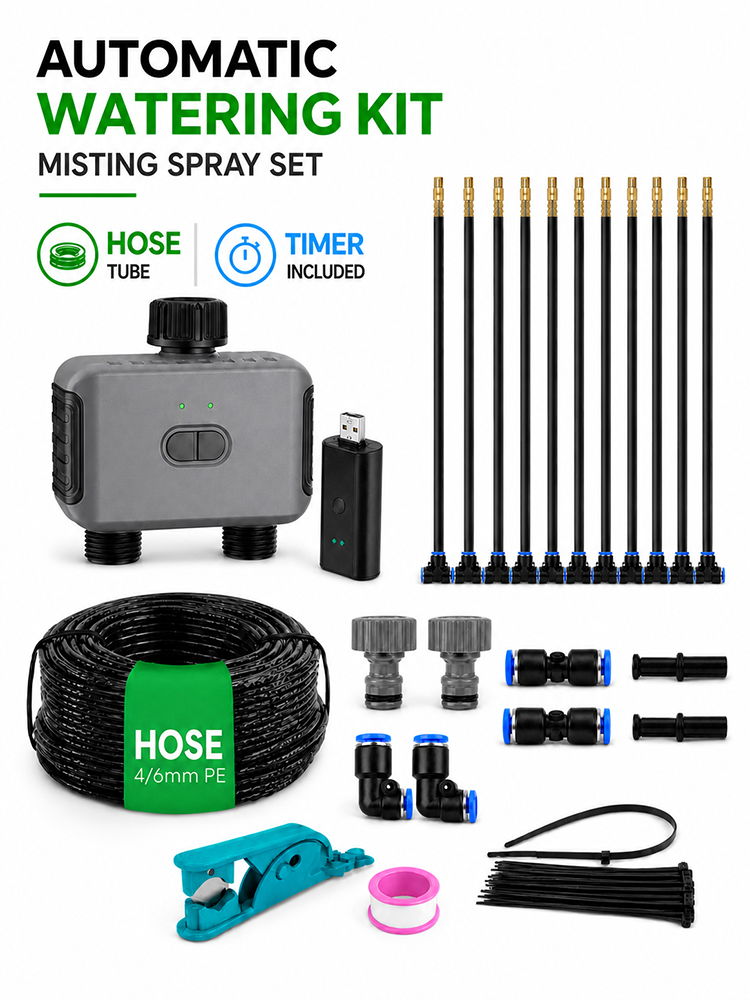

🌱 COMPLETE NOZZLE SYSTEM – Includes an LCD timer, PE tubing, misting nozzles, three-way connectors, outlet adapters, elbow fittings, straight connectors, end plugs, a pipe cutter and cable ties.

🌱 MULTIPLE WATERING MODES – Features automatic scheduling, manual watering, a rain delay of up to 15 days and a child lock. Ideal for patios, gardens, greenhouses, raised beds and plant cooling.

Specifications:
Product Code: Z003
Timer Model :  SGW08

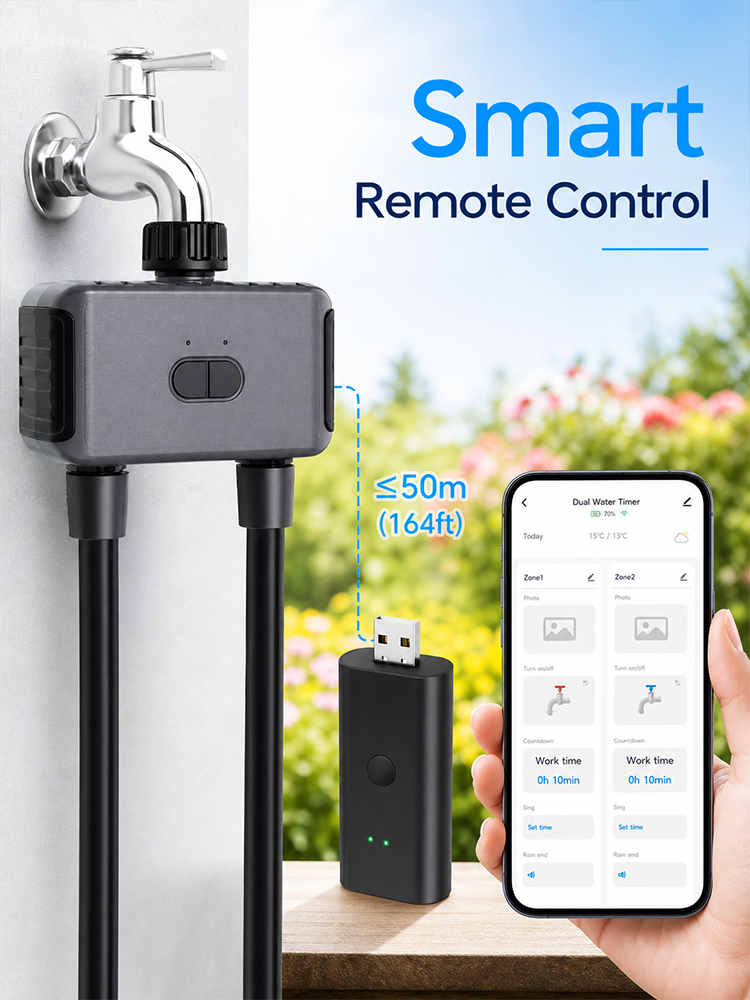

Smart Device: 2-zone Bluetooth WiFi Water Timer & Bluetooth Gateway
Watering Zones: 2 independently programmable outlets
Faucet Connection: Standard 3/4 in threaded outdoor faucet
Operating Pressure: 7.25–116 PSI
Operating Temperature: 40–113°F
Power Supply: 2 × AA alkaline batteries
Water-Resistance Rating: IPX5
Tubing Size: Approx. 5/32 in ID × 1/4 in OD
Tubing Length: 32ft, 65ft, 98ft optional
Misting Head: Adjustable brass nozzle
Flexible Stem: 8 in PVC-coated aluminum stem
Connection Type: Push-to-connect

Important Notes
- Two AA alkaline batteries are required and not included.
- Do not use rechargeable or carbon-zinc batteries.
- Connect the timer to a standard 3/4 in threaded outdoor faucet.
- Install the filter and silicone washer before use. Clean the filter regularly to prevent blockage.
- Hand-tighten the timer only. Tools or excessive force may damage the connection.
- Push the tubing completely into each quick-connect fitting to help prevent leaks.
- Operating water pressure must remain between 7.25 and 116 PSI.
- Low water pressure may reduce misting performance. A booster pump may be required.
- Turn on the faucet after installation and timer programming are complete.
- IPX5 means water-resistant but not suitable for immersion.
- The timer does not retain programmed settings after the batteries are removed.
- Replace the batteries when the low-battery indicator appears.
- Before freezing weather, drain the system, remove the timer and batteries, and store them indoors.
- When both zones have the same scheduled start time, the timer runs them sequentially to help maintain water pressure.
