🌱 3/4" Dual-Zone Garden Watering Timer | Smart Irrigation, Effortless Watering

✨ Product Highlights ✨

🌿 Say goodbye to manual watering and keep your garden in perfect condition at all times!

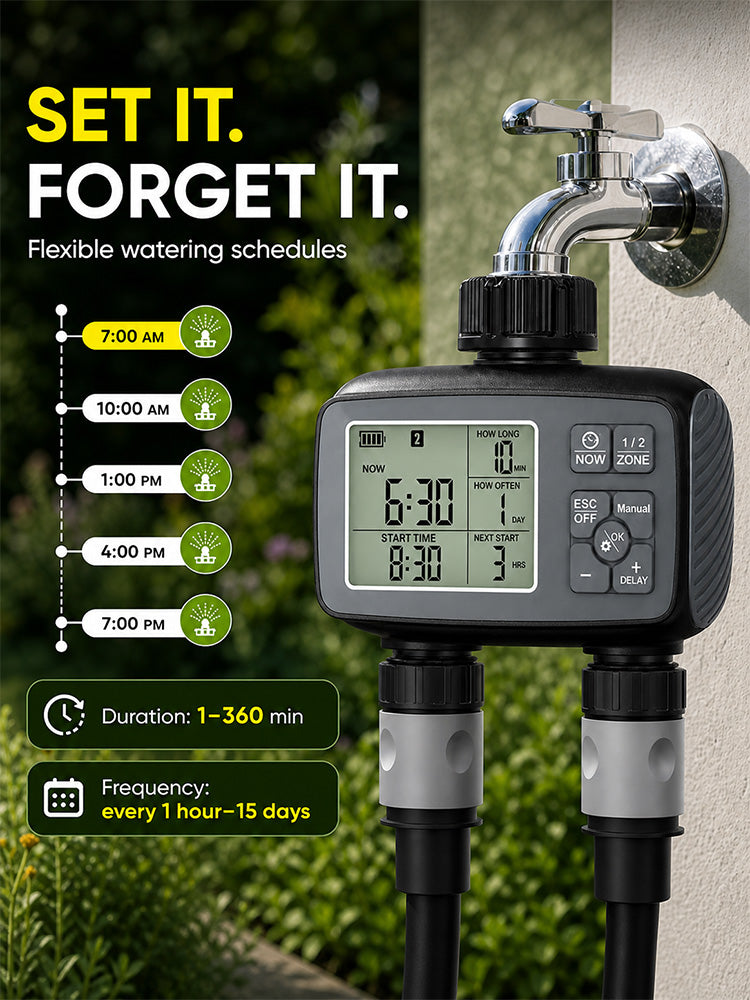

This dual-zone garden watering timer is designed for outdoor irrigation. Featuring a large LCD display and easy-to-use control buttons, it allows you to set up watering schedules with ease and free your hands from daily chores. With independent dual-zone control, you can manage two different areas simultaneously, making it perfect for gardens, lawns, balcony planters, and more.

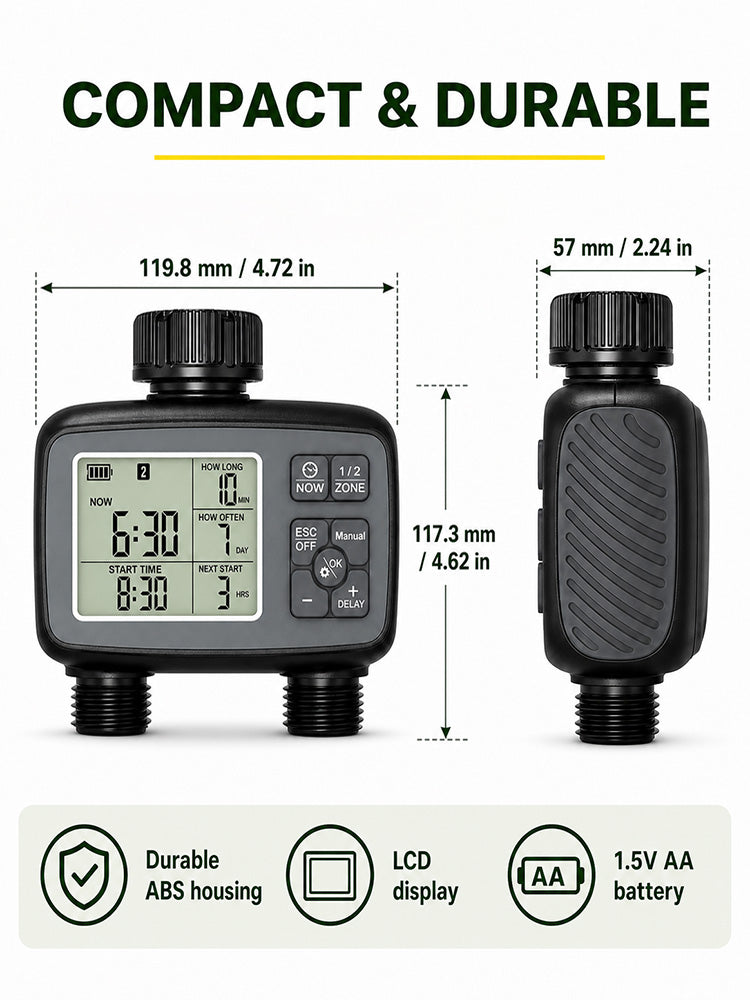

📋 Product Specifications

Interface Thread: 3/4" standard thread (1/2" adapter included)
Working Water Pressure: 0.05~0.8Mpa (7.25psi~116psi)
Working Temperature: 4.5℃~45℃ (40.1℉~113℉)
Power Supply: 2 x AA (1.5V) alkaline batteries (Batteries NOT included, purchased separately)
Waterproof Rating: IPX5 (weather-resistant, suitable for outdoor use)
Rain Delay Time: 0~15 days adjustable
Single Watering Duration: 1~360 minutes
Watering Frequency: 1~23 hours / 1~15 days
Material: High-strength engineering plastic, UV-resistant

🔋 Important Notice: This timer requires 2 x AA (1.5V) alkaline batteries. Batteries are NOT included in the package. Please prepare them separately. DO NOT use rechargeable batteries, as low voltage may cause malfunction.

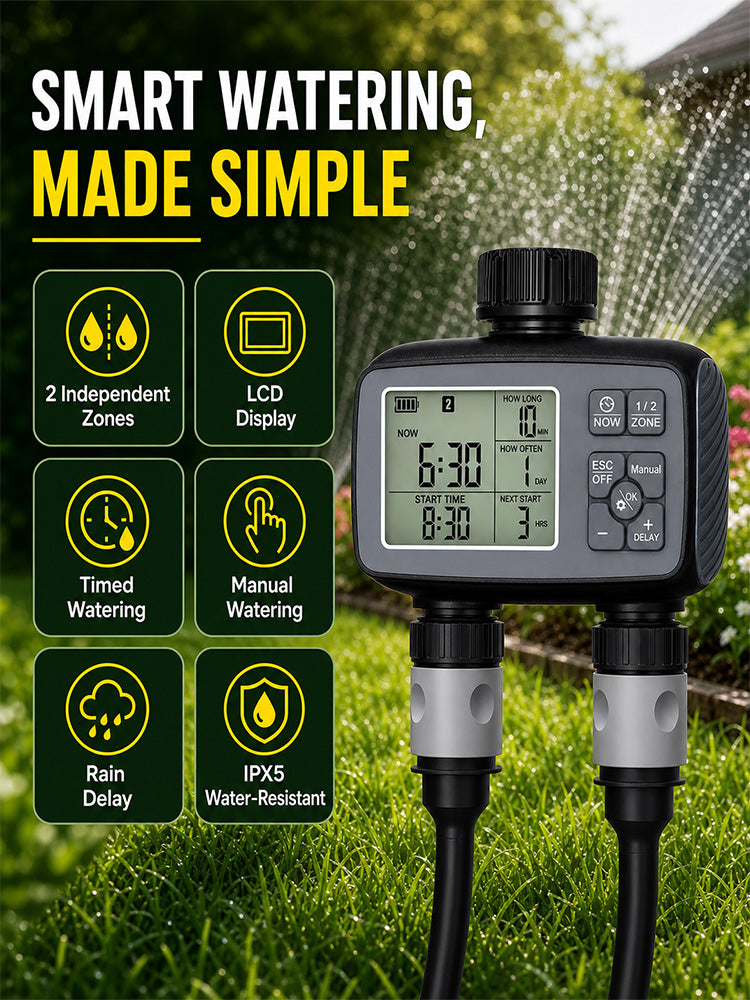

⚙️ Key Features

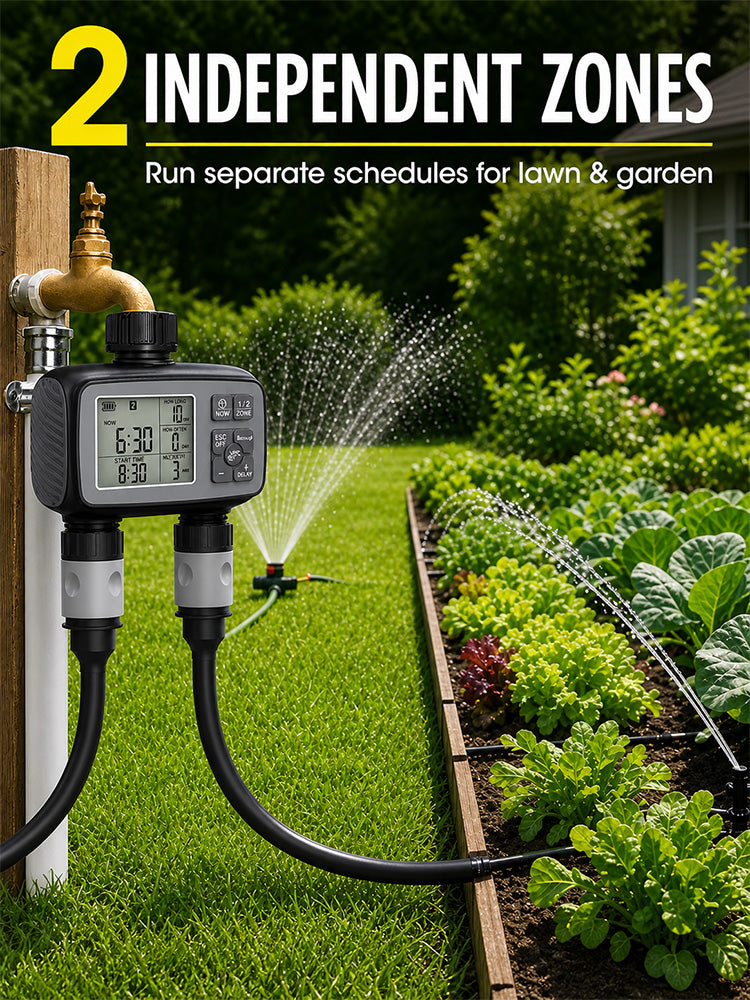

1️⃣ Dual-Zone Independent Control
Set two separate watering programs for Zone 1 and Zone 2. Each zone can have its own start time, duration, and frequency, perfectly meeting the needs of different plants in various areas.

2️⃣ Smart Automatic Irrigation
Set it once and enjoy worry-free watering all season. Simply program the current time, start time, watering duration, and frequency, and the timer will execute the schedule automatically. Supports daily or hourly cycles for maximum flexibility.

3️⃣ Manual Watering Mode
Need extra watering during unusually hot weather? Press the MANUAL button to enter manual mode and set a watering duration from 0 to 360 minutes. This will not interrupt your preset schedule—perfect for on-demand needs.

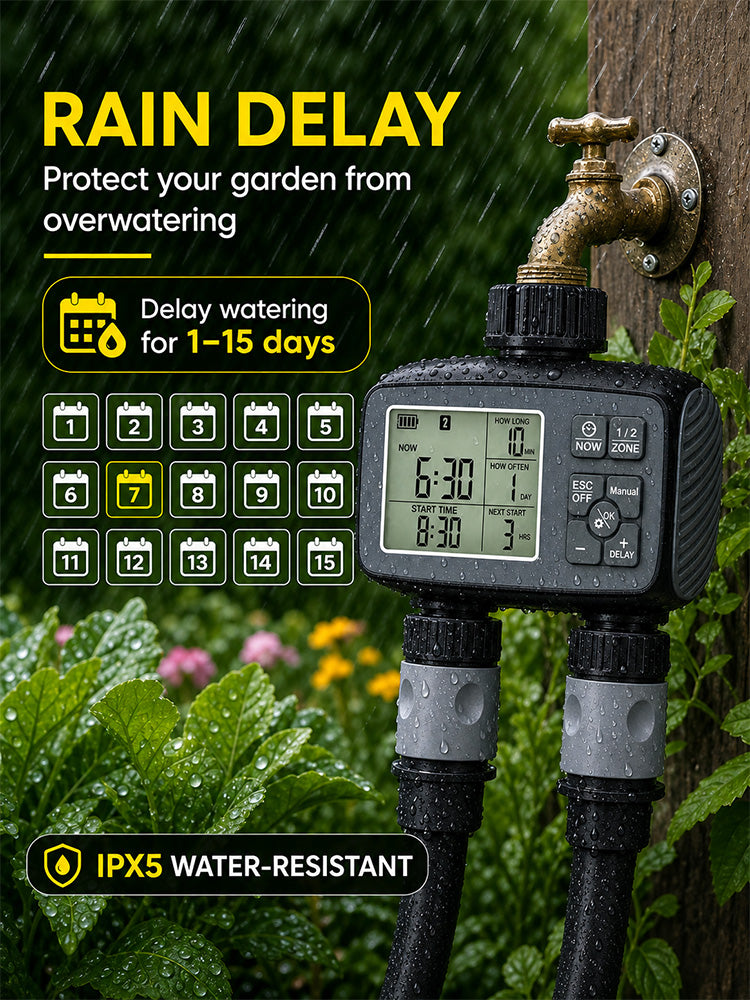

4️⃣ Rain Delay Mode
No need to cancel schedules on rainy days. Press and hold the DELAY button for 5 seconds to set a delay from 0 to 15 days. The timer will automatically skip watering during this period, saving water and preventing overwatering.

5️⃣ OFF Mode
Need to pause all watering tasks? Press and hold the OK button for 5 seconds to enter OFF mode—all programmed schedules will be suspended. Press and hold again to resume, ideal for maintenance or travel.

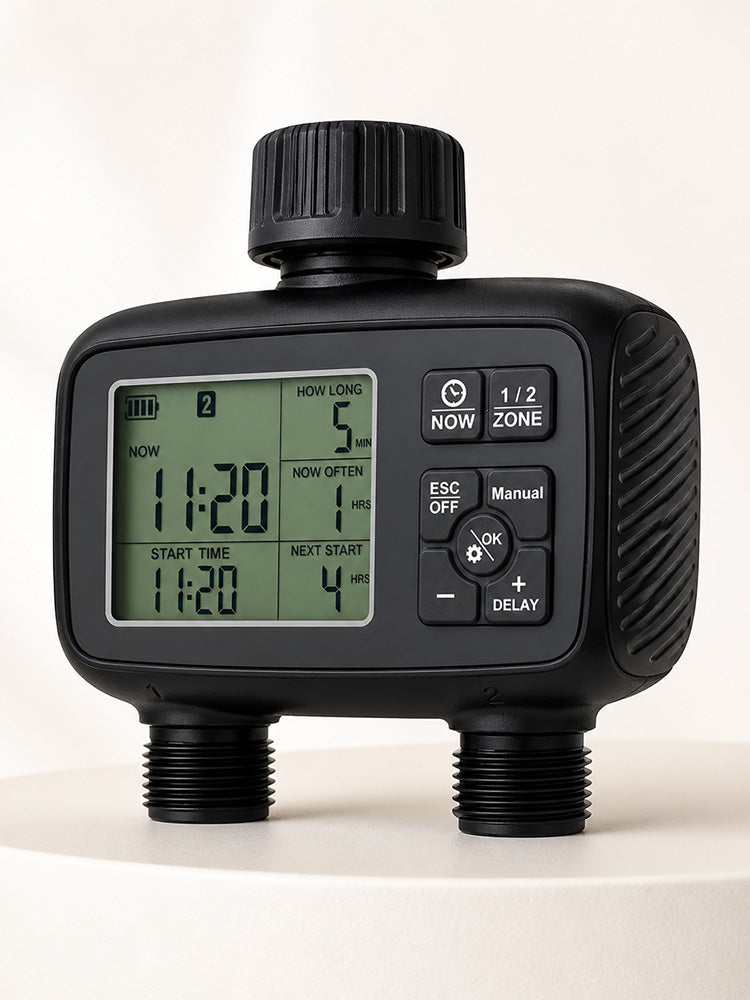

6️⃣ Large LCD Display
The oversized LCD screen clearly shows current time, remaining time, schedule status, and more, making it easy to read at a glance.

🔧 Installation & Operation Guide

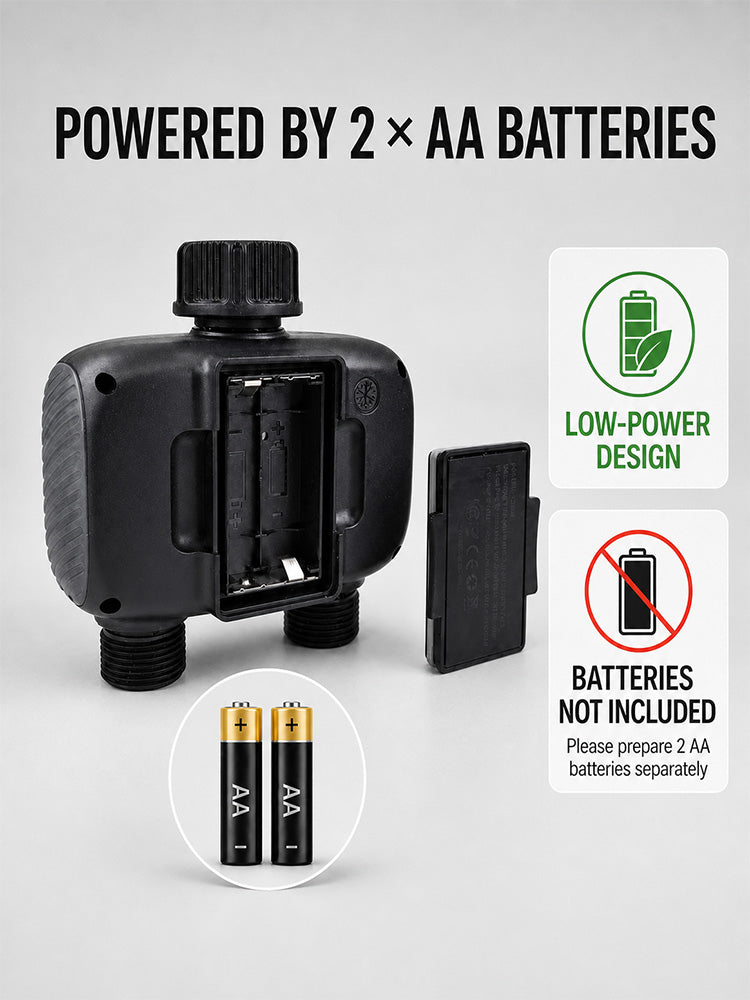

🔋 Battery Installation

1. Remove the battery cover on the back of the timer.

2. Insert 2 new AA (1.5V) alkaline batteries, paying attention to polarity (+/-).

3. Firmly close the battery cover to ensure a watertight seal.

⚠️ Please Note: Batteries are NOT included. You will need to purchase 2 x AA (1.5V) alkaline batteries separately.

Tip: Replace batteries promptly when the low battery indicator appears on the display. For winter storage, remove batteries, drain any residual water, and store the timer indoors to prevent freezing damage.

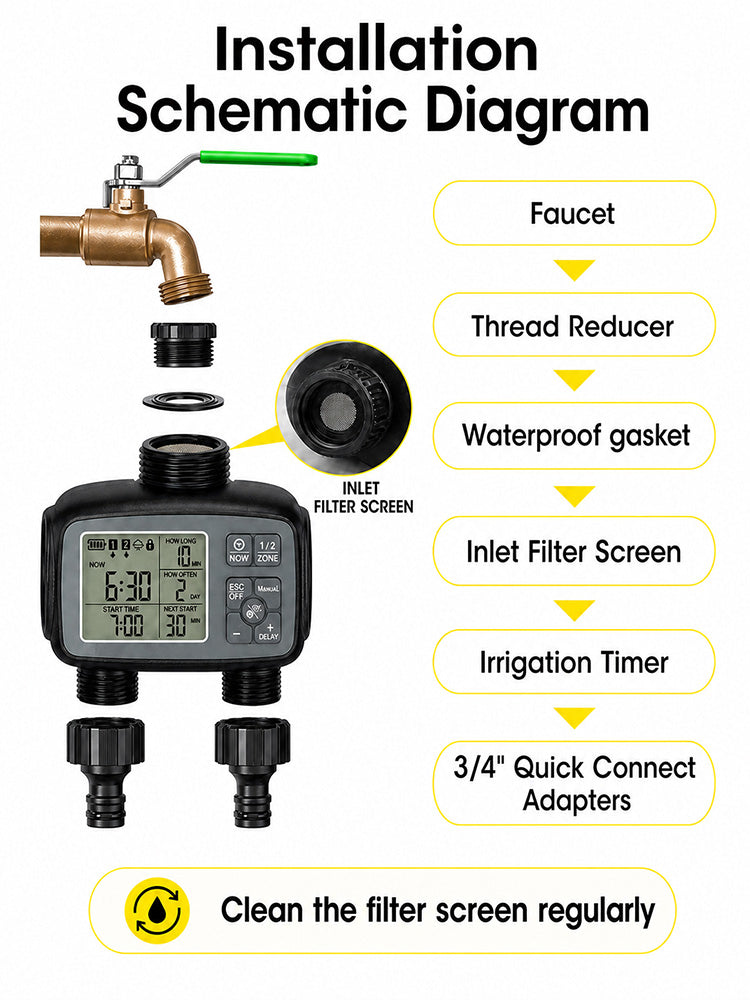

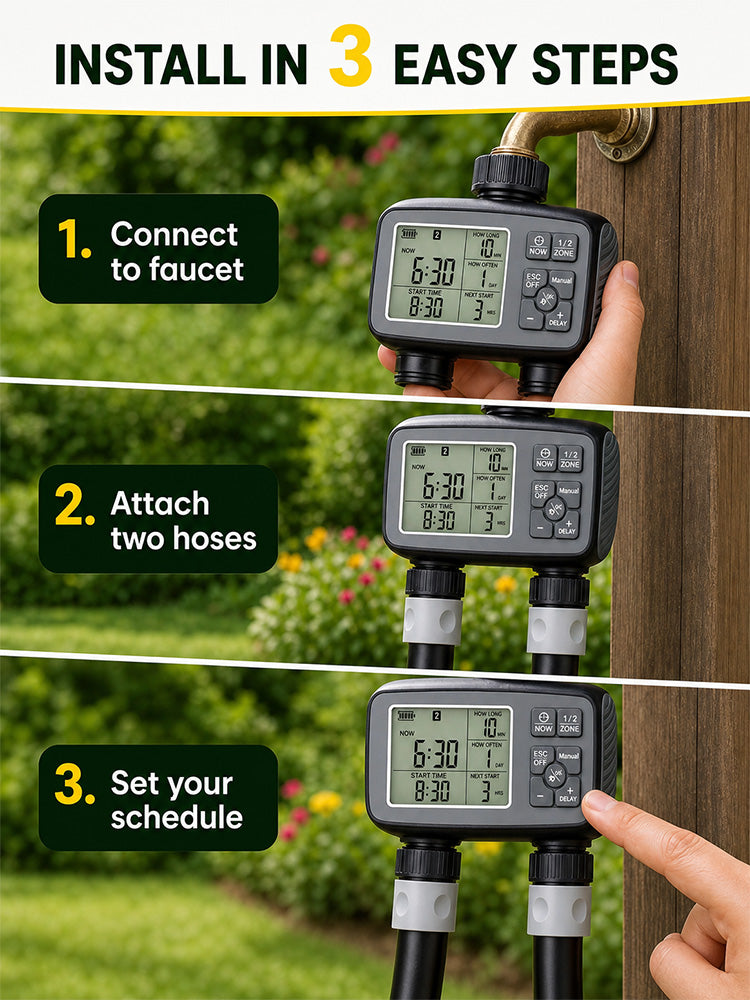

🚰 Timer Installation

1. Screw the timer directly onto an outdoor hose faucet. (Hand-tighten ONLY. Do NOT use tools.)

2. If the thread does not match, use the included 3/4" to 1/2" adapter.

3. Always install the filter to trap dirt and debris, preventing damage to the internal valve.

4. If leakage occurs, add the silicone gasket or use thread seal tape.

5. Turn on the water tap after programming is complete.

📝 Quick Programming Steps

1. Set Current Time: Press the NOW button, use +/- to adjust hours and minutes, then press OK to confirm.

2. Set Start Time: Press ZONE to select the zone, press OK to enter, then set the desired start time.

3. Set Watering Duration: Set the duration from 1 to 360 minutes (HOW LONG).

4. Set Watering Frequency: Set from 1~23 hours or 1~15 days (HOW OFTEN).

5. Press OK to save and confirm. The timer will return to the main screen and automatically execute the schedule.

🏡 Ideal Applications

🌸 Home Gardens: Automatic watering for flowers, vegetables, and shrubs
🌿 Lawn Care: Timed sprinkling to keep your lawn lush and green
🪴 Balcony Planters: Zone-specific control for different potted plants
🌱 Greenhouses: Precise irrigation for improved growing efficiency
✈️ Vacation Mode: Keep plants alive automatically when you are away for days

⚠️ Important Notes

This timer requires 2 x AA (1.5V) alkaline batteries. Batteries are NOT included in the package—please purchase separately.
Designed for 3/4" standard thread faucets only.
Hand-tighten only. Do NOT use tools, as over-tightening may damage the timer.
Always install the filter. Clean or replace it regularly to extend the timer's lifespan.
Use only alkaline batteries. Rechargeable batteries may cause low voltage issues and malfunction.
Winter care: Remove batteries, drain water completely, and store indoors to prevent freezing damage.
When multiple zones are scheduled simultaneously, the timer will complete each zone sequentially to avoid low water pressure issues.
For outdoor cold water use only. Do NOT connect to hot water or household appliances.

📦 Package Contents

Watering Timer Unit ×1
3/4" to 1/2" Thread Adapter ×2

User Manual ×1

⚠️ Friendly Reminder: Batteries are NOT included in the package. Please purchase 2 x AA (1.5V) alkaline batteries separately before use.

🌟 Let smart technology care for your garden—order now and enjoy effortless irrigation! 🌟
