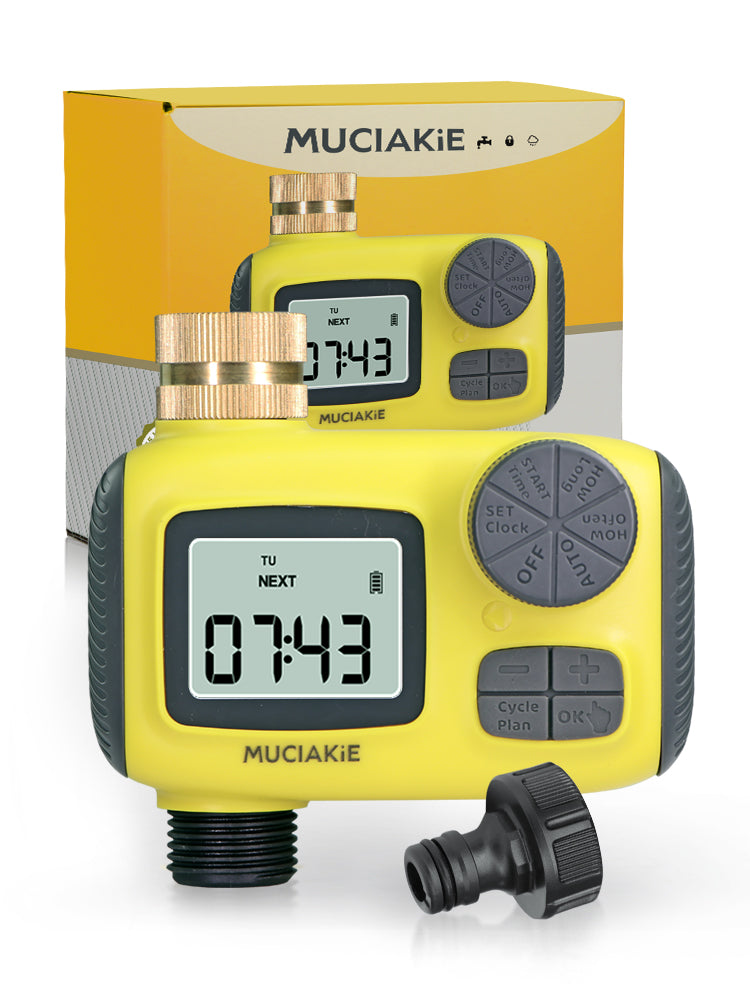

The N367 Luxury Single-Outlet Timer features a large LCD screen, three customizable watering schedules, and manual watering. With rain delay (1-15 days), child lock, and automatic scheduling, it ensures efficient irrigation. IP55 waterproof, brass inlet, and power failure memory make it ideal for indoor and outdoor use.

🌱 LCD Display: Equipped with a large LCD screen (4x3 cm visible interface), this irrigation timer features bold, easy-to-read fonts. It clearly displays watering schedules and time settings, ensuring simple and intuitive operation.

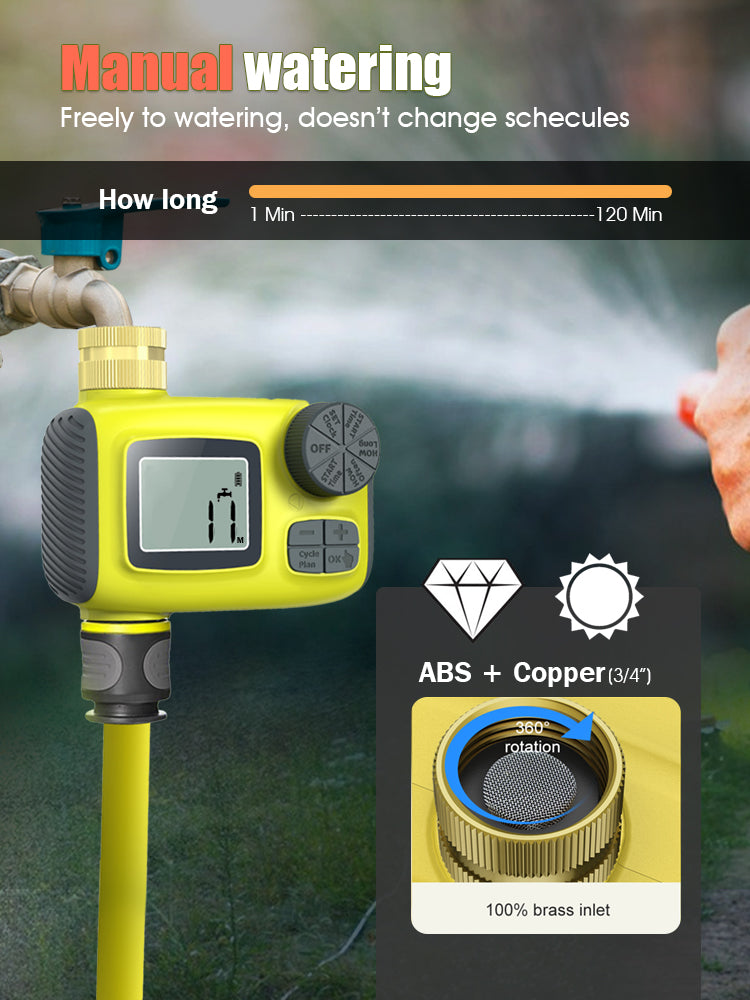

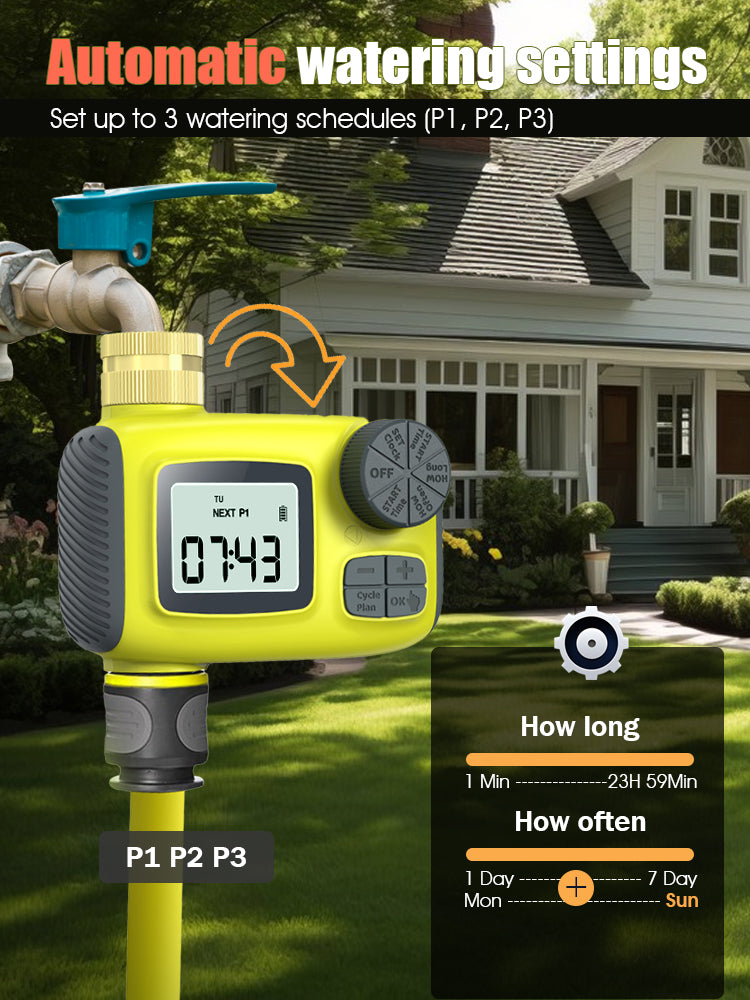

🌱 Multiple Watering Modes: Supports three independent watering schedules (P1, P2, P3) with customizable start times (00:00-23:59), durations (1 minute to 23 hours 59 minutes), and frequencies (every 1-7 days or specific weekly combinations from Monday to Sunday). The manual watering mode allows flexible on-demand watering from 1 to 120 minutes.

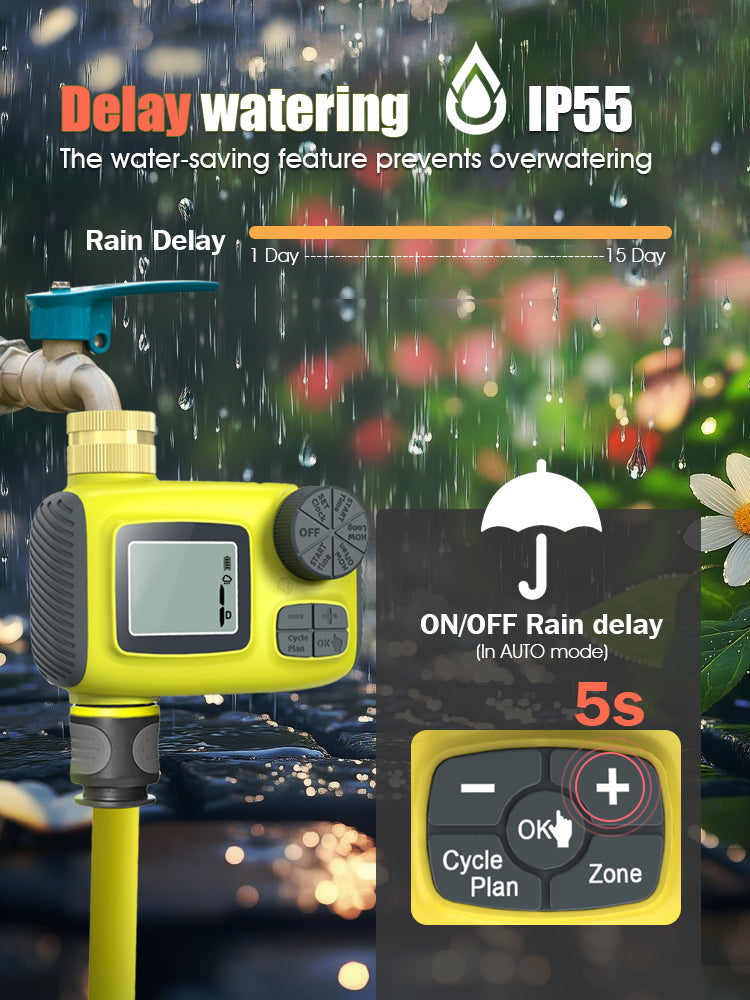

🌱 Rain Delay: Activate or deactivate the rain delay function (1-15 days) by holding the '+' button for 5 seconds in automatic mode. This intelligent feature prevents overwatering on rainy days, optimizing water usage and ensuring efficient irrigation management.

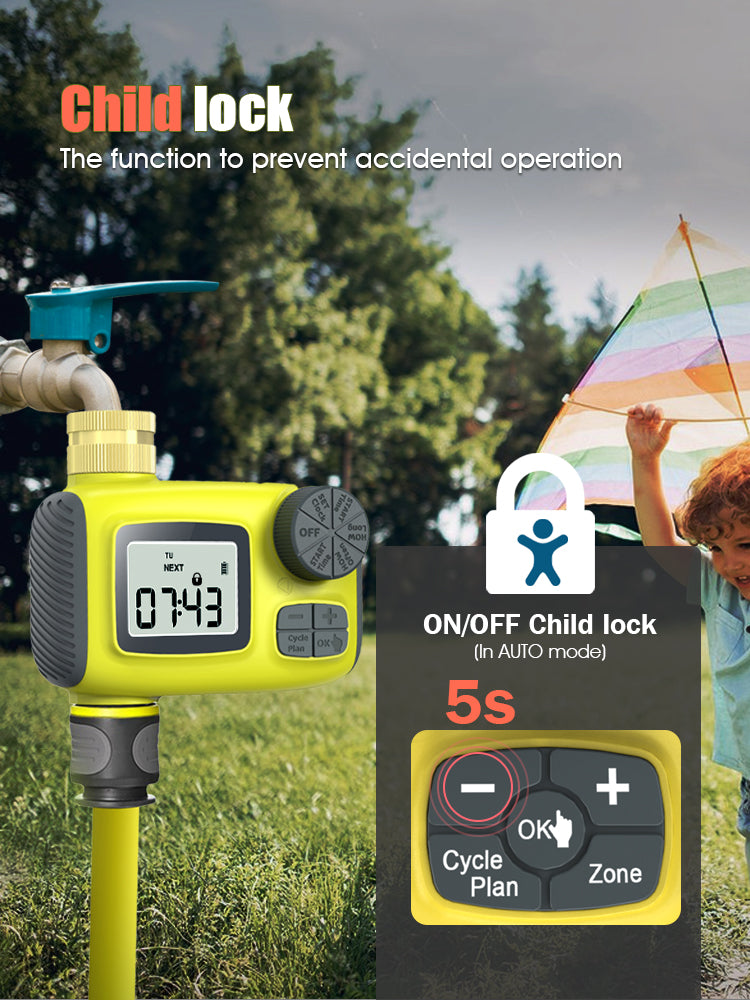

🌱 Child Lock: Designed with a child lock to prevent accidental operation. Easily enable or disable the child lock by holding the '-' button for 5 seconds in automatic mode, providing peace of mind for households with children.

🌱 Automatic Scheduling & Conflict Resolution: In automatic mode, the display shows the current time and the next scheduled watering. If schedules overlap, the earliest one takes priority. If two schedules start at the same time, P1 runs first. In case of duration conflicts, tasks transition smoothly, ensuring uninterrupted and efficient irrigation.

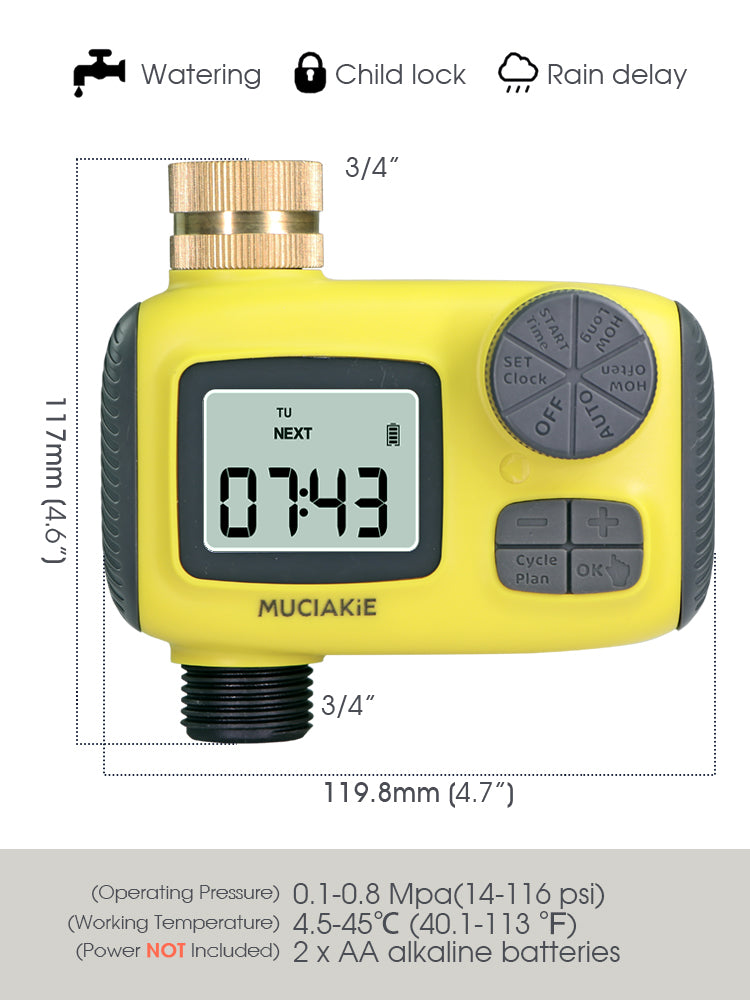

Specification:
• Product Name: N367 Luxury Single-Outlet Timer.
• Material: UV-resistant ABS, Brass (Inlet).
• Inlet Size: 3/4'' brass thread.
• Operating Pressure: 0.1~0.8 MPa (14~116 psi).
• Working Temperature: 4.5°C~45°C (40.1°F~113°F).
• Power: 2 x AA Alkaline Batteries (NOT included.) (Do not use rechargeable batteries).
• Waterproof Rating: IP55.
• Usage: For Outdoor or indoor Use.
• Water Outlets: 1 outlet.
• Watering Programs: Supports 3 independent watering plans (P1, P2, P3).
• Manual Watering: 1-120 minutes.

• Watering Schedule Settings:
   - Start Time: 00:00 - 23:59.
   - Frequency (How Often):
      • By Day: Every 1-7 days.
      • By Week: Select specific days (Monday to Sunday).
   - Duration (How Long): 1 minute to 23 hours 59 minutes.

• Rain Delay:
   - Delay Duration: 1~15 Days.
   - Activation: Hold '+' button for 5s in Auto mode.
• Child Lock:
   - Activation: Hold '-' button for 5s in Auto mode.
• Manual Watering:
   -  Manual Duration: 1~120 Minutes.
• Power Failure Memory: Retains programmed settings after power failure or battery replacement.

• Automatic Mode:
   - Display: Shows current time and next watering time, cycling every 1.5 seconds.

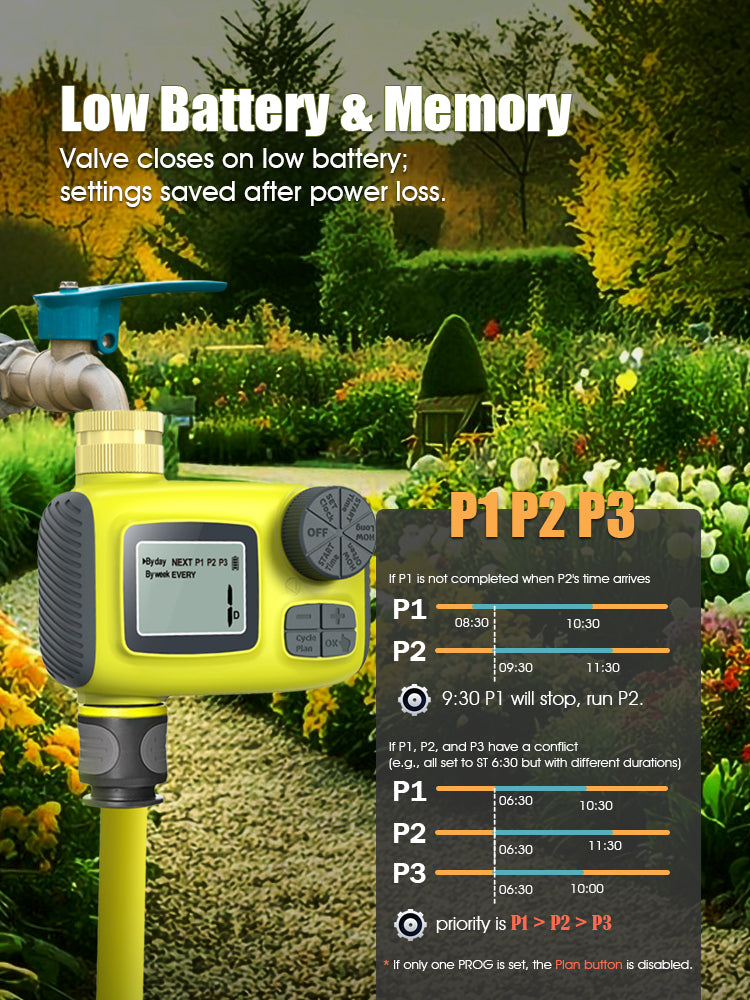

   - Conflict Handling:
      • If P1 is still running when P2's scheduled time arrives, P1 will stop, and P2 will start.
      • If there is a scheduling conflict among P1, P2, and P3 (e.g., all have the same start time of 6:30 but different durations), the system prioritizes them in the following order: P1 > P2 > P3.
      • If only one program (PROG) is set, the 'Cycle Plan' button will be disabled.

⚠ Note:
1. Battery Installation & Usage:
Use two new AA alkaline batteries. Avoid mixing old and new batteries or using carbon and rechargeable batteries. Ensure proper polarity when inserting the batteries.

2. Battery Replacement:
Replace the batteries promptly when the low battery indicator appears to prevent valve failure or leaks. If the device will be unused for an extended period, remove the batteries to prevent damage.

3. Frequency Settings:
    - Daily Mode: Set watering to occur every 1 to 7 days.
    - Weekly Mode: Select specific watering days (Monday to Sunday).
    - Default Setting: If no days are selected, the system will automatically default to Sunday (SU).

4. Troubleshooting Guide:
    • Leakage Issues:
       - Confirm the rubber washer is correctly positioned and that the faucet is 3/4-inch compatible.
       - If leakage continues, apply Teflon tape to the faucet threads.
    • Water Flow Won't Stop:
       - Turn off the faucet, set the device to AUTO, and manually start watering for 5-7 seconds. Repeat this process 3-5 times to reset the valve.
       - Alternatively, remove and reinstall the batteries to restore normal operation.
    • Device Not Responding: Ensure all settings are properly saved by pressing the OK button after making adjustments.
