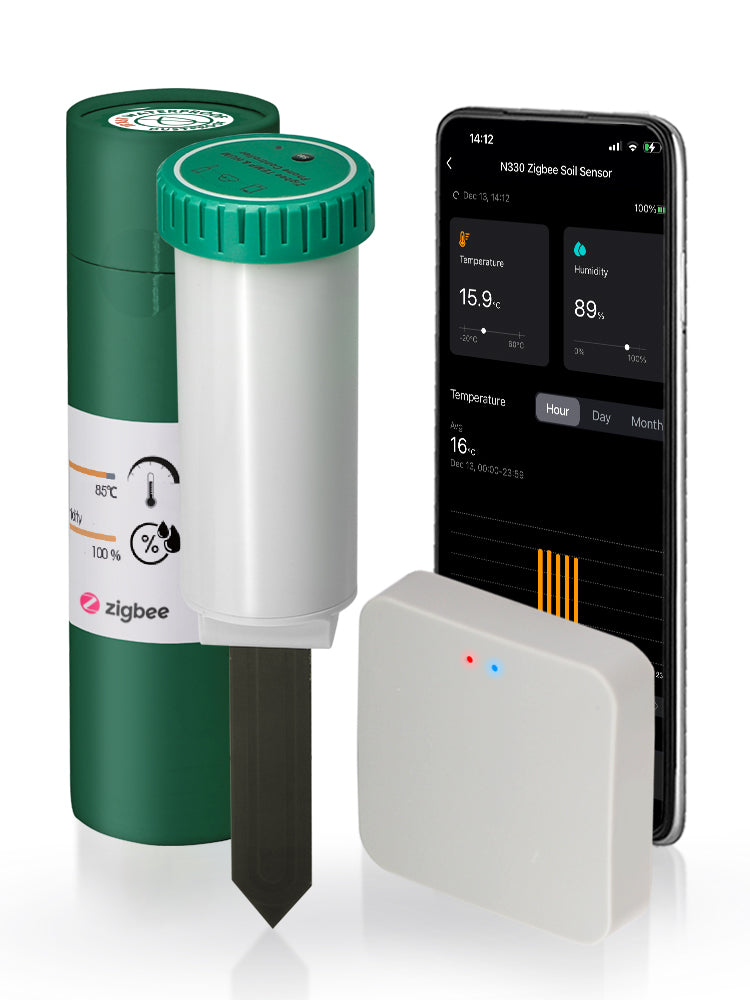

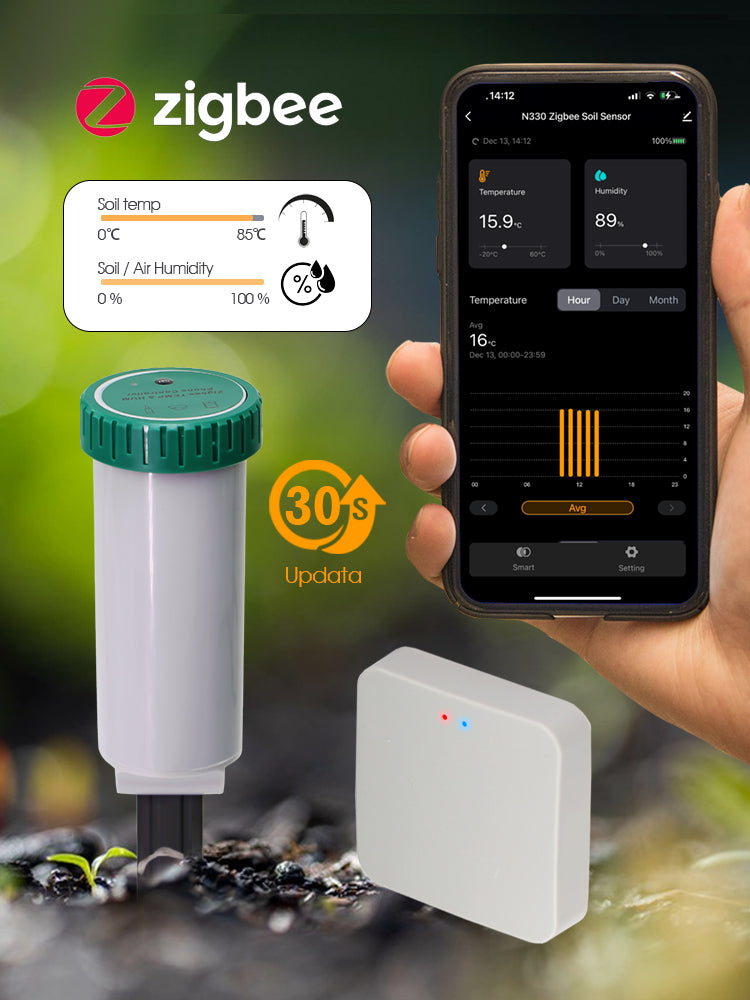

The N330 2-IN-1 Zigbee Soil Sensor provides accurate real-time monitoring of soil temperature and humidity, featuring long battery life, smart alerts, data export, and intelligent linkage for seamless agricultural, gardening, and greenhouse management. Reliable, efficient, and easy to operate.

🌱 Zigbee Connectivity: The N330 2-IN-1 Zigbee Soil Sensor is powered by 4 x AA alkaline batteries (NOT included), offering a long battery life of 6 months to 1 year. It supports a 150-meter (492FT) open-line communication distance between the sensor and gateway. With the mobile app, you can monitor soil temperature and humidity in real-time from anywhere in the world, ensuring you always have control over environmental data.

🌱 Accurate Monitoring: The device accurately measures soil humidity (0-100% RH) and air/soil temperature (0-85°C), with a humidity accuracy of ±1% and a temperature accuracy of ±0.5°C. The app allows you to freely switch between temperature units (°C/°F) and set custom temperature alerts (-20°C to 60°C) and humidity alerts (0-100% RH). Alerts are sent via the app, phone, or SMS, enabling timely adjustments to environmental conditions.

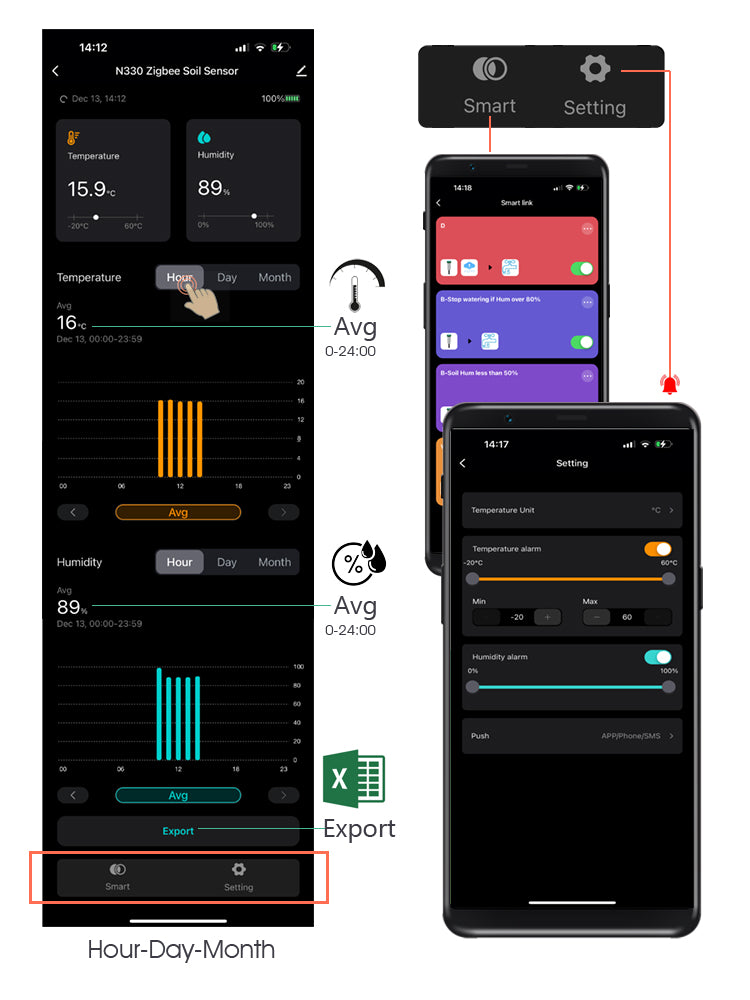

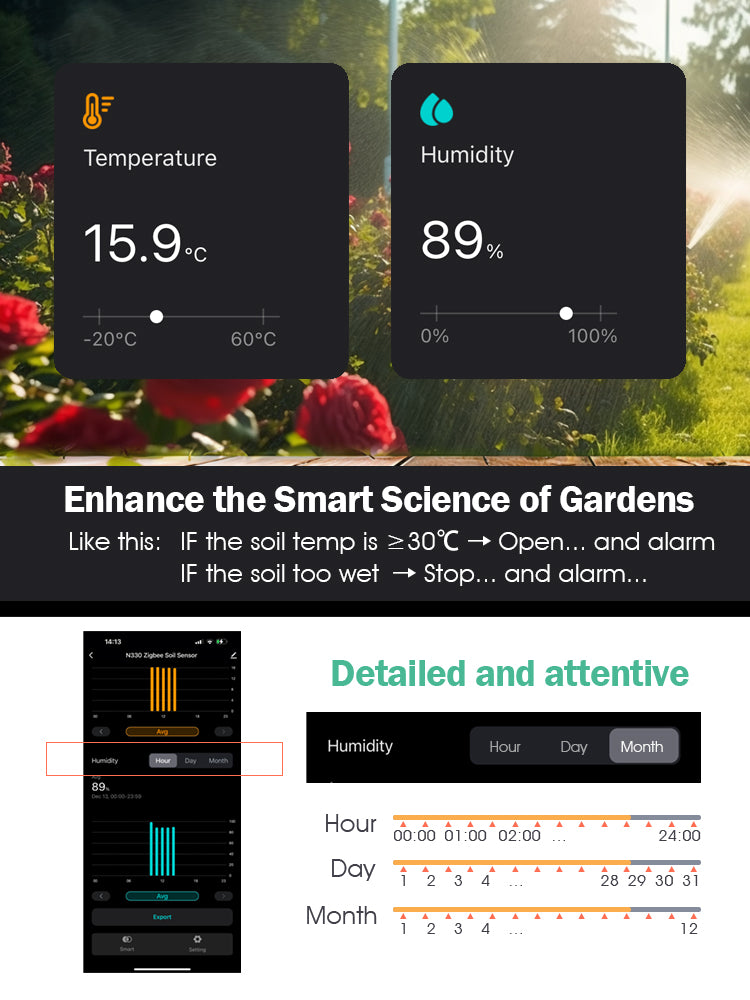

🌱 Clear Data Display: The app features a user-friendly interface with clear and intuitive data visualization. Real-time temperature and humidity data are displayed at the top of the interface (updated every 30 seconds), while bar charts provide a detailed view of historical data with multiple modes:
     - Hour Mode: Displays the daily average value, with bar charts showing hourly averages;
     - Day Mode: Displays the average values for the past 30 days, with bar charts showing daily averages;
     - Month Mode: Displays the average values for the past 12 months, with bar charts showing monthly averages.
The historical data can be exported via the 'Export' button, making it easy for analysis and record-keeping.

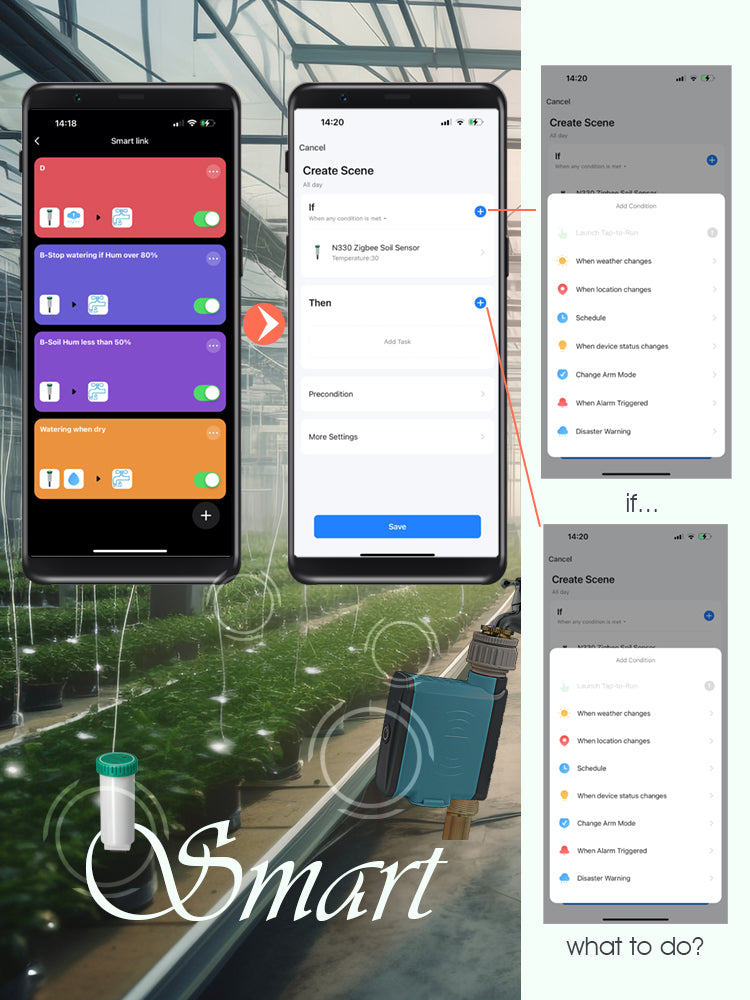

🌱 Smart Scene Linkage: The device supports multiple intelligent linkage scenarios for collaborative operation:
    - Automatically water or stop watering by linking with a smart irrigation timer based on soil humidity or temperature conditions;
    - Execute commands based on local disaster warnings;
    - Customize activation conditions (e.g., status or time periods) to optimize scene-triggering efficiency;
    - Additional diverse smart linkage functions to meet the needs of agricultural planting and smart home management.

🌱 Wide Application Scenarios: The sensor allows for device sharing with family members, making collaborative management convenient. Leveraging Zigbee technology, the data upload rate reaches up to 250kbps, and soil temperature and humidity data are regularly transmitted to the mobile app or cloud. It is widely applicable to agricultural planting, gardening management, and greenhouse control, providing users with a scientific and reliable solution for environmental monitoring and management.


Specification:

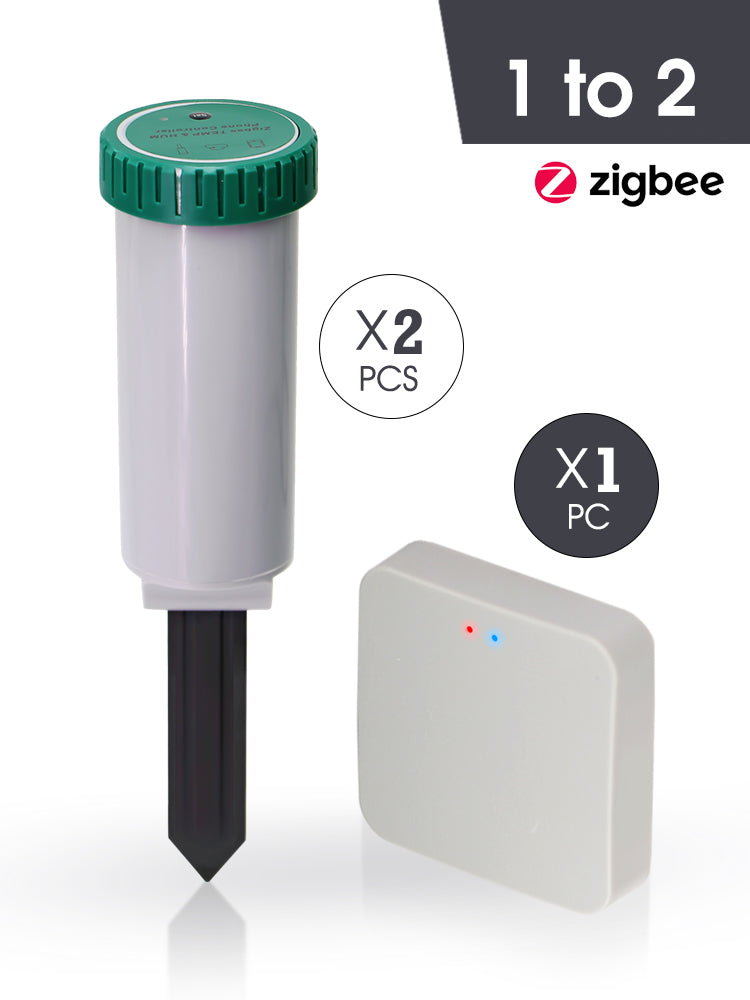

• Name: N330 2-IN-1 Zigbee Soil Sensor with Gateway.
• Power Supply: 4 x AA alkaline batteries (NOT included).
• Battery Life: 6 months to 1 year.

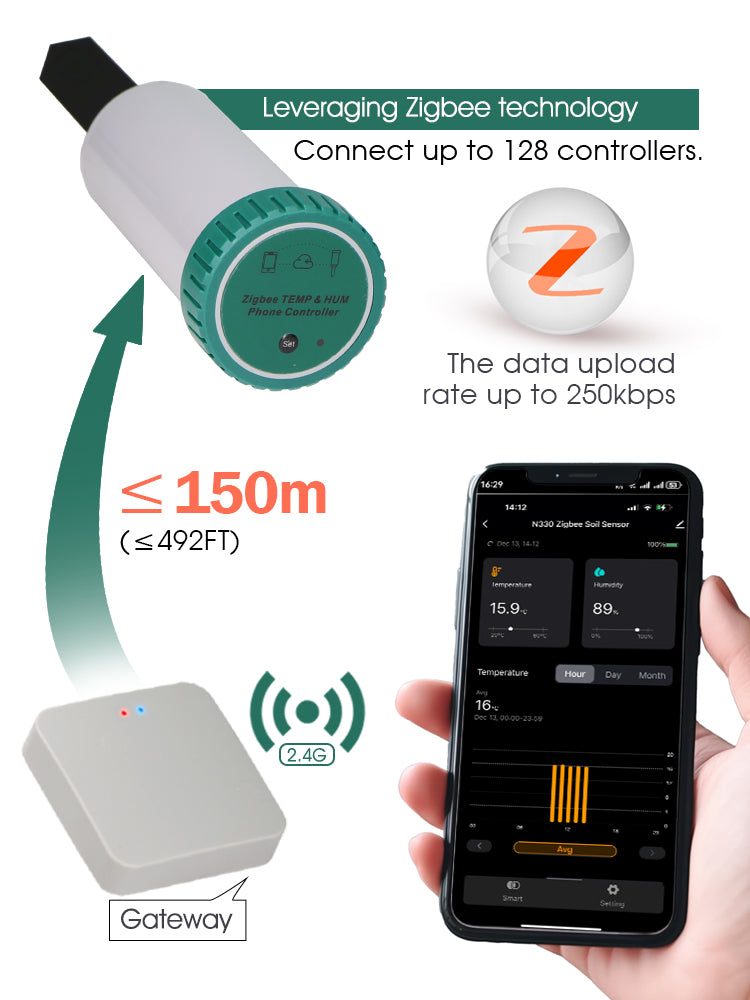

• Connectivity: Zigbee technology, supports 150m (492FT) open-line communication distance between the sensor and gateway.
• Monitoring Parameters:
   - Soil Humidity: 0-100% RH (±1% accuracy).
   - Air/Soil Temperature: 0-85°C (±0.5°C accuracy).
   - Temperature Unit: Switchable between °C/°F.
   - Alert Settings: Customizable temperature (-20°C to 60°C) and humidity (0-100% RH) alerts.
• Real-Time Updates: Every 30 seconds.
• Operating Frequency: 2.4 GHz.

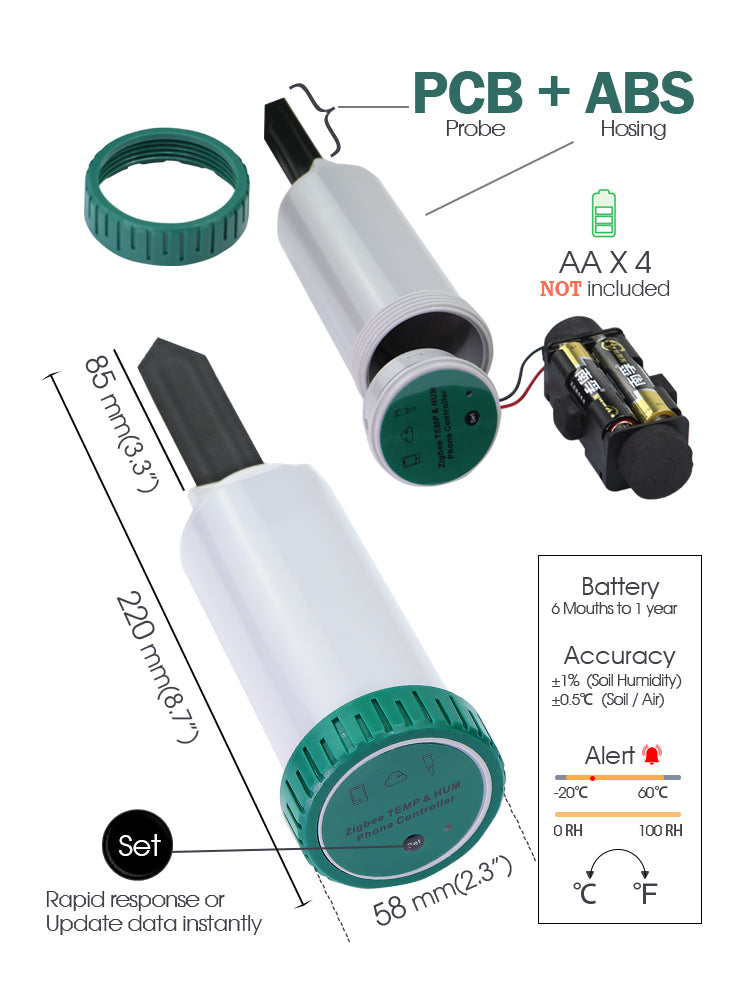

• Dimensions:
   - Overall Height: 22 cm (8.7'').
   - Width: 5.8 cm (2.3'').
   - Probe Length: 8.5 cm (3.3'').
• Material:
   - Housing: ABS.
   - Probe: PCB.
• Waterproof Rating: IP67


⚠ Note:
1. Battery Replacement:
Avoid replacing the battery in rainy conditions to prevent rainwater from entering the device. Moisture inside the shell may damage the internal components.
2. Proper Sensor Placement:
When using the device, ensure the sensor is fully inserted into the soil until it reaches the bottom for accurate measurements.
 3. Sealing Ring Usage:
Always reinstall the sealing ring correctly after replacing the battery. Failure to do so may weaken the waterproof performance.
 4. Avoid Damage to the Sensing Plate:
Do not rub the sensing plate against the ground to prevent damage to the circuit board.
5. Data Refresh:
The Zigbee sensor refreshes temperature and humidity data every 30 seconds by default.
If immediate data refresh is needed, press the configuration button on the device to update the sensing data instantly.
