The 2-Zone Misting Irrigation Kit combines an automatic LCD water timer with PE hose, brass misting nozzles, and quick-connect fittings to create a complete garden watering and cooling system. Designed for flower beds, lawns, patios, greenhouses, and vegetable gardens, it helps deliver fine atomized mist or scheduled irrigation with less manual work.

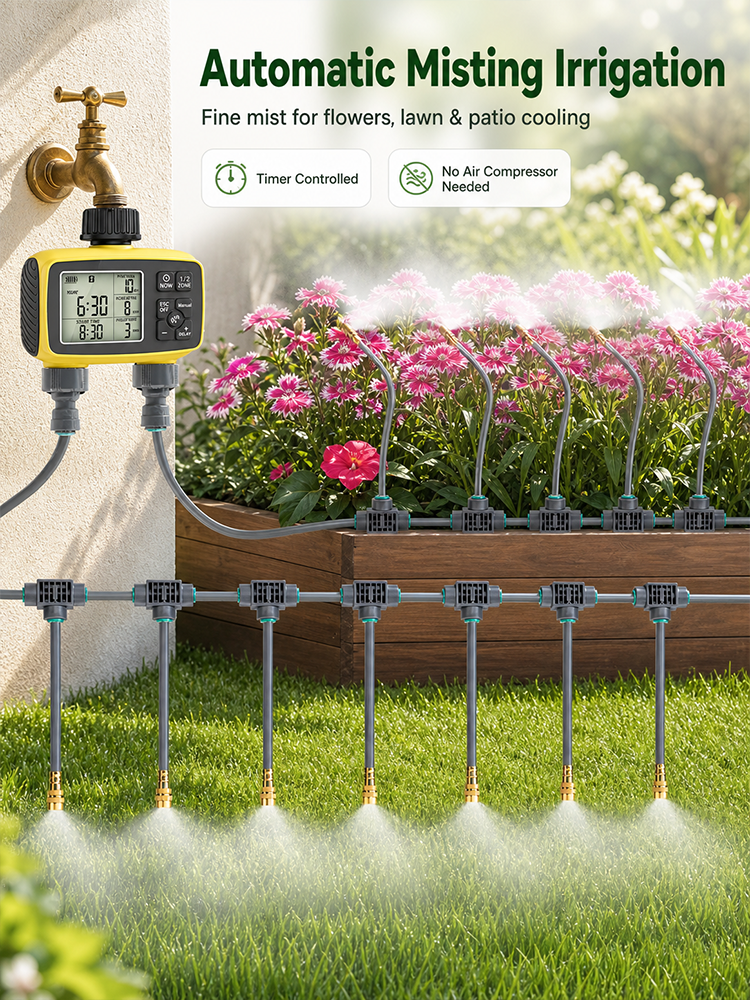

🌱 Automatic Misting & Irrigation System:

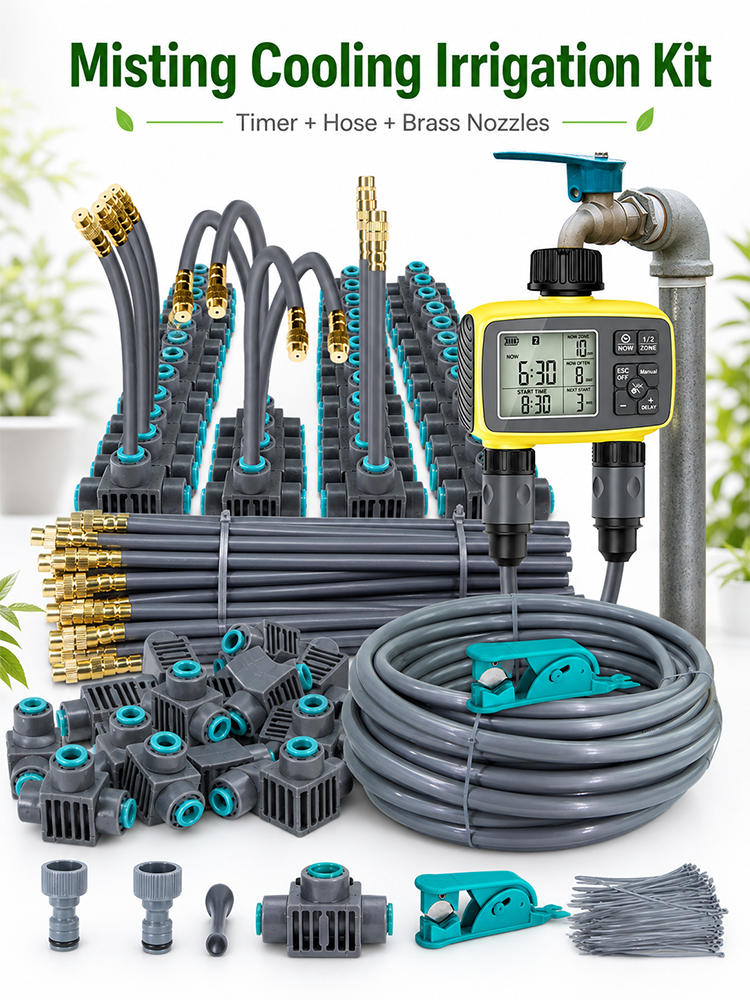

This complete kit includes a dual-outlet LCD water timer, PE hose, brass misting nozzles, 3-way joints, adapters, direct, bend, plug, pipe cutter, and cable ties. It can be used for plant watering, garden irrigation, patio cooling, greenhouse humidity control, and flower bed misting.

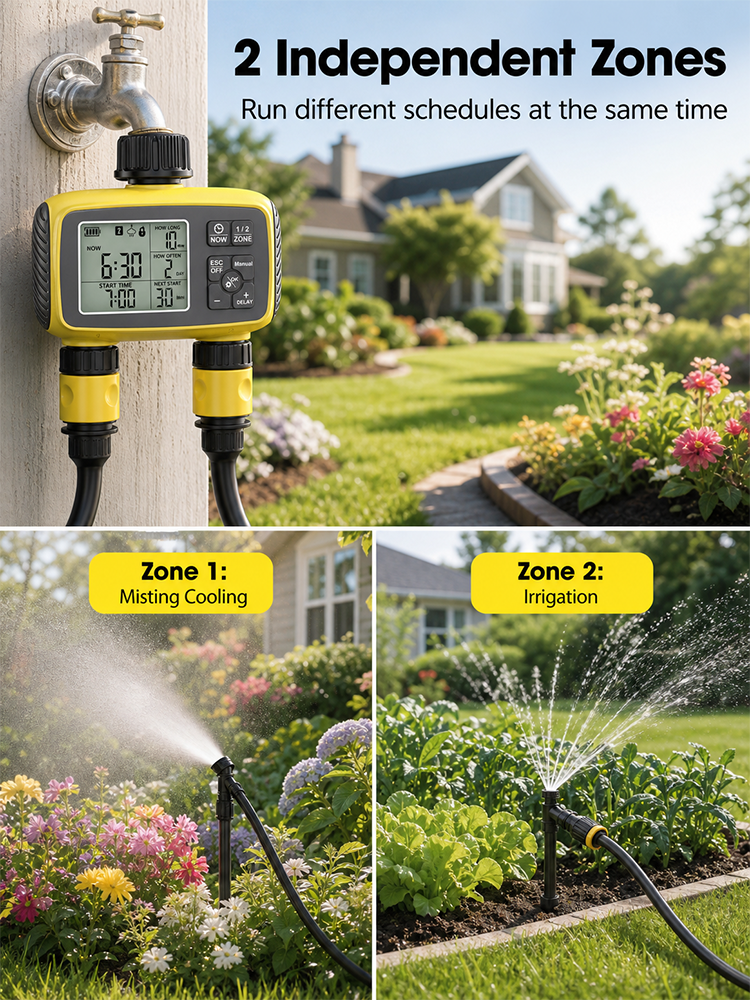

🌱 2 Independent Watering Zones:
The dual-outlet timer allows two separate watering areas to be controlled independently. You can use one outlet for mist cooling and the other for garden or lawn irrigation, making it suitable for different outdoor watering needs.

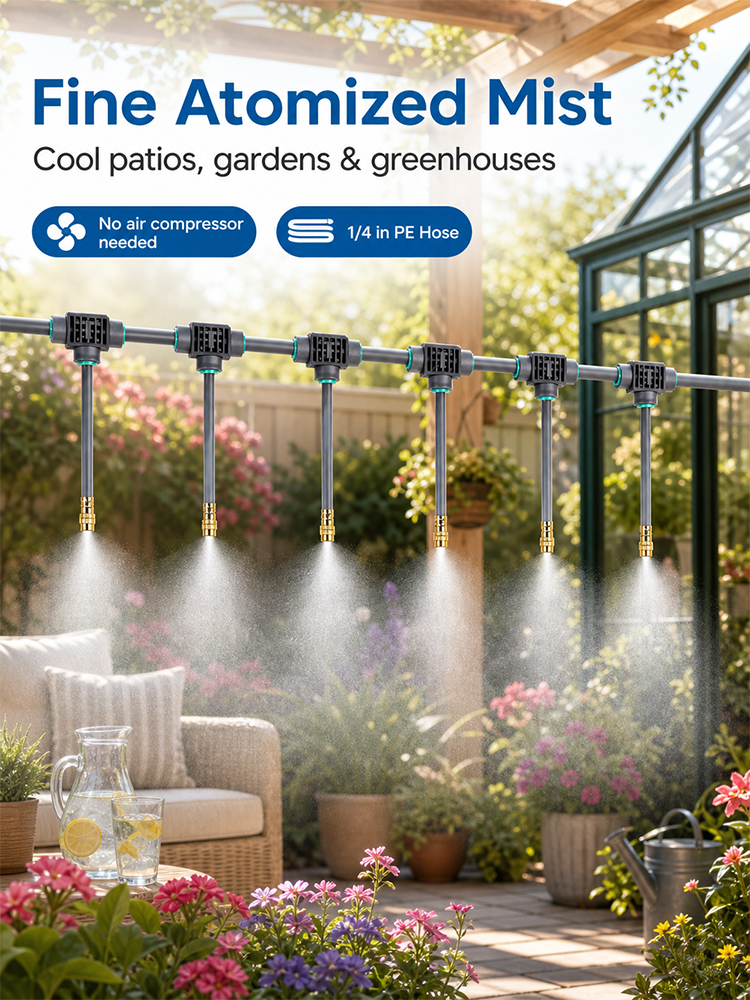

🌱 Fine Atomized Mist:
The brass misting nozzles produce a soft, fine spray that helps cool outdoor areas and gently water delicate plants. It is ideal for flowers, seedlings, potted plants, patios, balconies, and greenhouses.

🌱 Easy DIY Installation:
The 4/6mm in PE hose can be cut to the desired length with the included pipe cutter. Push-connect fittings make setup simple, allowing you to arrange the nozzles along flower beds, garden edges, greenhouse frames, or patio areas.

🌱 Manual Watering & Rain Delay:
Manual watering mode lets you temporarily water plants when needed without changing the automatic schedule. Rain delay helps pause watering during rainy days to reduce water waste and prevent overwatering.

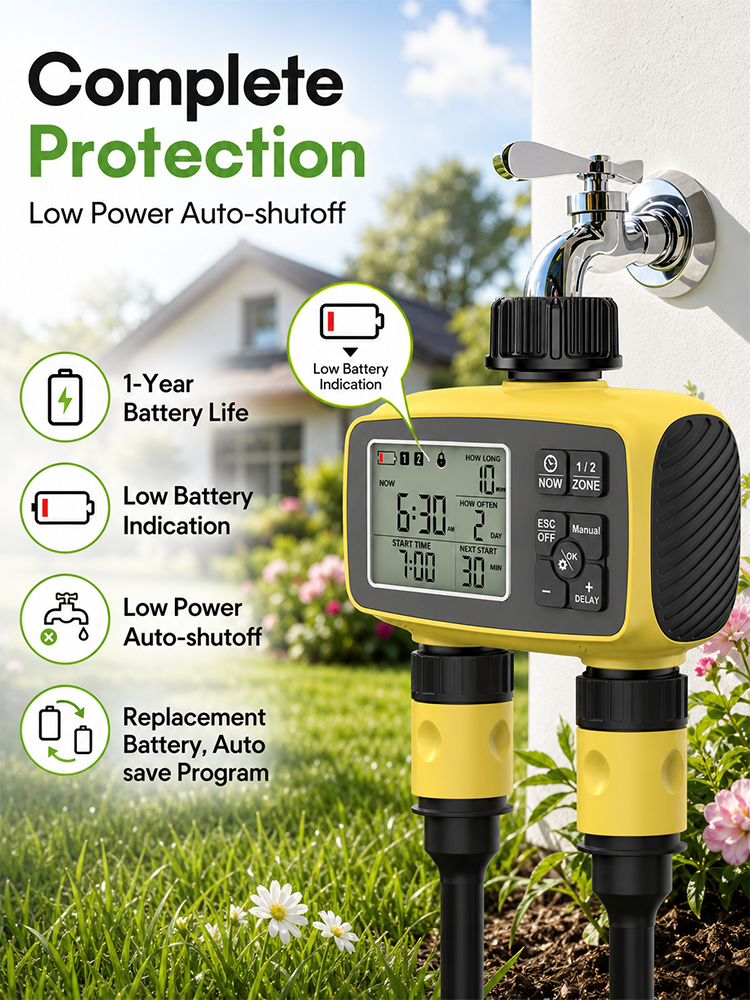

🌱 Low Battery Protection & Program Memory:
The timer displays a low battery reminder and helps protect against continuous watering when power is low. Program memory keeps the saved watering settings after battery replacement, reducing the need for repeated setup.

🌱 No Air Compressor Needed:
The misting system connects directly to a standard outdoor faucet. No air-assisted equipment is required, making it convenient for home garden use.

Specification:
• Product Name: 2-Zone Automatic Misting Irrigation Kit.
• Timer Type: LCD Dual-Outlet Water Timer.
•Material: ABS+UV-resistant material
•Inlet size: 3/4'' UV-resistant plastic.
•Working pressure: 0.05~0.8 MPa (7.25~116 psi).
•Operation temperature: 4.5°C~45°C (40.1°F~113°F).
•Power: 2 X AA alkaline battery (not included). (Do not use rechargeable batteries).
•Waterproof level: IP55.
•Usage: For outdoor or indoor use.
• Water outlet: 2 separate sockets (zone 1 and zone 2).
• Manual watering: 1-120 minutes.
•Certification: CE/ROHS/FCC
• Watering schedule settings:
- Start time: 00:00-23:59.
- Frequency (how often):
•Daily: Every 1-7 days.
• Weekly: Select a specific day (Monday to Sunday).
- Duration (how long): 1 minute to 6 hours.
•Rain delay:
- Delay duration: 1 to 15 days.
- Activate: Press and hold the '+' button for 5 seconds in automatic mode.
•Child lock:
- Activate: Press and hold the button for 5 seconds in automatic mode.

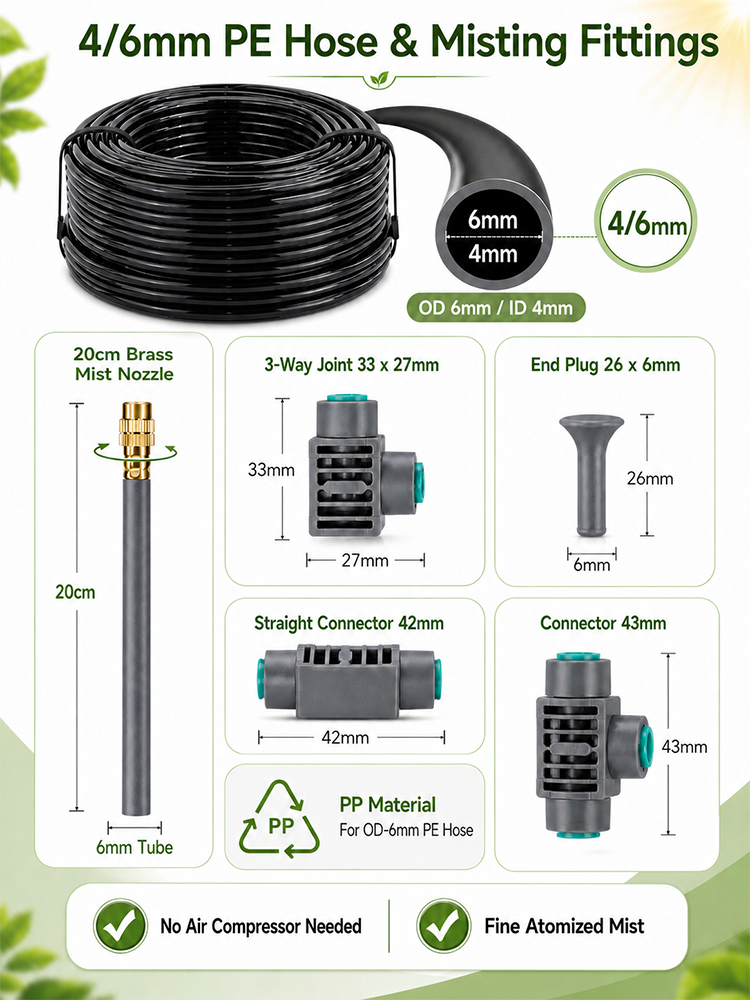

• Hose Type: 4/6mm in PE Hose.
• Hose Size: OD 6mm / ID 4mm.
• Nozzle Type: Brass Mist Nozzle.
• Nozzle Tube Length: 20cm.
• Tube Diameter: 6mm.
• Connector Material: PP.
• Application: Garden, lawn, patio, greenhouse, balcony, flower bed, vegetable garden.
• Water Outlets: 2 independent outlets.
• Installation Type: DIY cut-and-connect misting system.
• Air Compressor: Not required.

Available Kit Options:

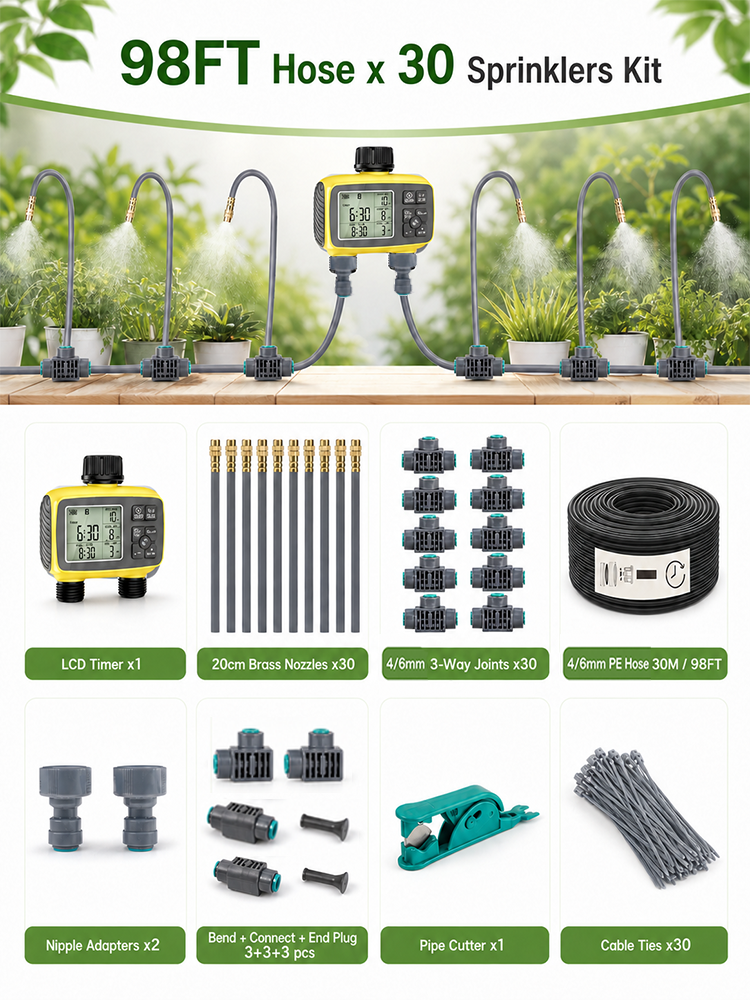

• 32FT / 10 Sprinklers Kit: 10M hose, 10 mist nozzles, 10 3-way joints, timer, adapters, pipe cutter, cable ties, direct, bend, plug.
• 65FT / 20 Sprinklers Kit: 20M hose, 20 mist nozzles, 20 3-way joints, timer, adapters, pipe cutter, cable ties, direct, bend, plug.
• 98FT / 30 Sprinklers Kit: 30M hose, 30 mist nozzles, 30 3-way joints, timer, adapters, pipe cutter, cable ties, direct, bend, plug.

⚠ Note:
Installation:
Cut the PE hose according to your layout, then firmly push the hose into the connectors to prevent leakage. Make sure each nozzle and fitting is fully inserted before use.

Water Pressure:
The misting effect may vary depending on household water pressure. For best results, connect the system to a stable outdoor faucet.

Battery Use:
Install the required batteries correctly before using the timer. Replace batteries promptly when the low battery indicator appears.

Outdoor Use:
Install the timer vertically under a faucet and avoid long-term direct exposure to heavy rain when possible.

Maintenance:
If the mist becomes weak or uneven, check whether the nozzle is blocked. Clean the nozzle and hose line regularly for better performance.
